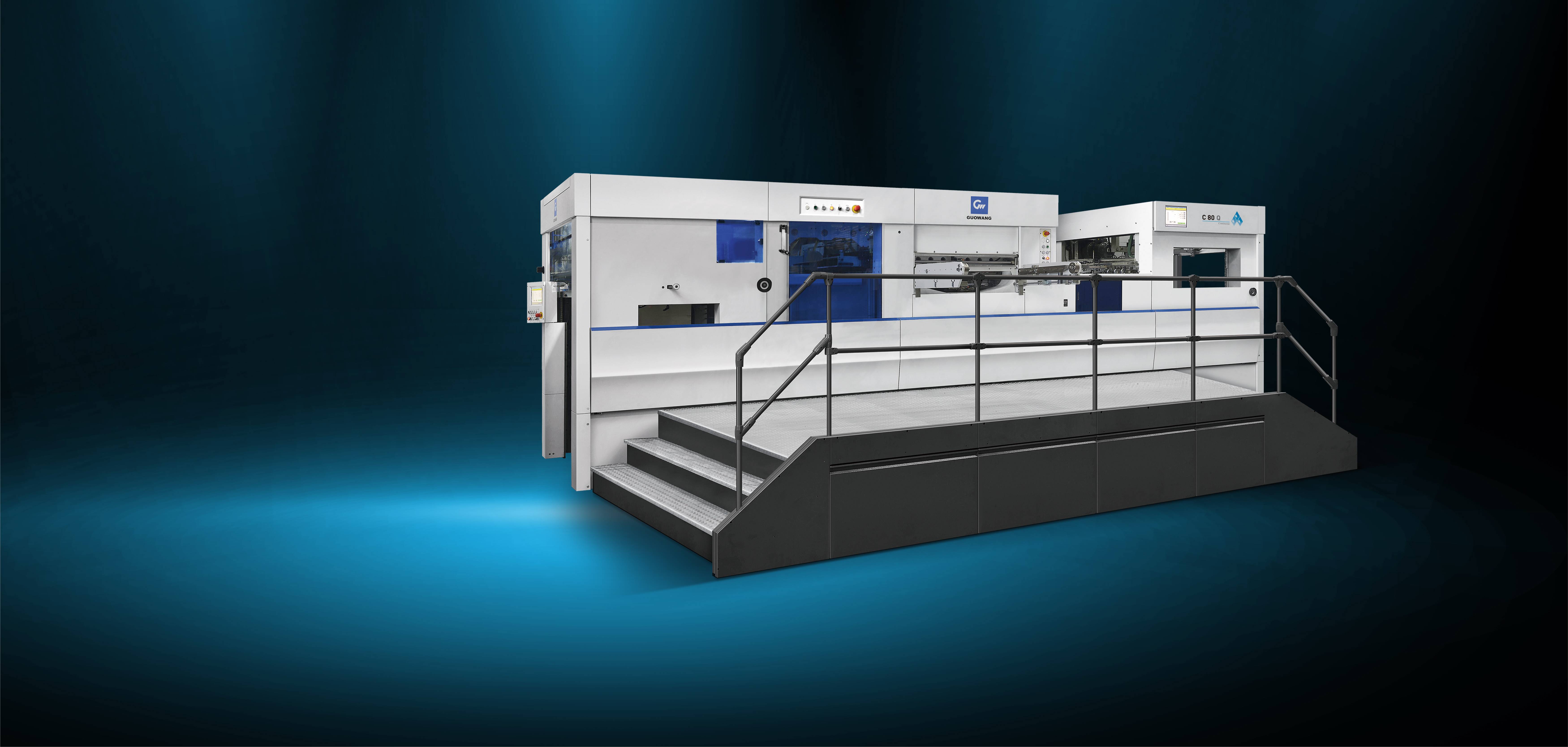

C80Q Automatic die-cutting machine

C80Q

Product Comparison

Die cutting speed

sheets/hour

Maximum paper size

millimetre

Minimum paper size

millimetre

Maximum cutting width

millimetre

Veneer bite size

millimetre

Product Overview

Premium embossing and die-cutting: This machine is designed to meet all the qualities you expect: excellent precision, exceptional productivity and outstanding product quality - everything you need to simply get brilliant results.

Die-cutting and scrap conversion: one machine is versatile, enabling flexible conversion between die-cutting and scrap.

Profitable, reliable and long-lasting: excellent price/performance ratio, durable and reliable machine.

Die-cutting and waste removal in a single pass: Immediate generation of high-quality stacked and counted batches, significant reduction of workload and associated costs, complete paper collection for short non-repeating orders.

User-friendly operation interface: the stamping part is equipped with a 19-inch HD touch screen, all settings as well as functions can be easily realized by touch Based on the special knowledge of the equipment, a characteristic operation and control system has been developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

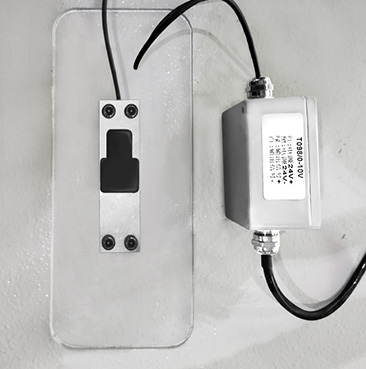

Real-time pressure detection to ensure safe operation of the machine (optional).

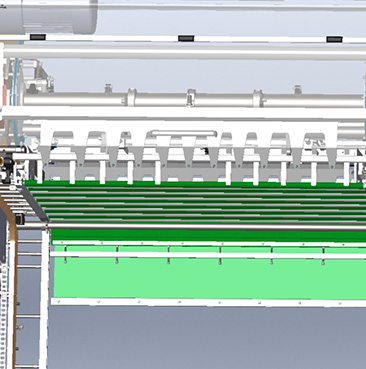

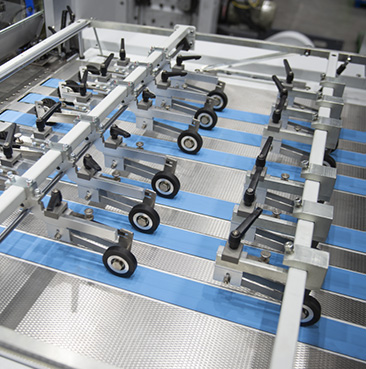

Conveyor belts and anti-static steel plates ensure ideal material transfer, and synchronization devices provide superior control of sheet arrival at the front gauge, reducing breakdowns and downtime.

Easier to operate, can effectively avoid human error, resulting in downtime waste.

Automatic lubrication system with touch screen to adjust the refueling intervals and the amount of refueling in the system.

Parameters

Machine Parameter:C80Q

Commencement

Model Number C80Q
Maximum Die-cutting Width 785*585mm
Bite Blank Range 9-17mm
Maximum Die Cutting Pressure 150 tons
Paper Specifications White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm
Maximum Die Cutting Speed 7500 sheets/hour
Heating Area
Height Of Infeed Stack 1300mm
Stack Height 1050mm
Main Motor Power 7.5kw
Power Of The Whole Machine 13kw
Total Weight 13 tons
Exterior Dimensions 5510*3620*2150mm
Air Requirements 6-8bar;180L/min
Die Cutting Accuracy
Mounting Parameters:C80Q

Commencement

Total Length Of Machine Profile 5510 mm
Total Width Of Machine Profile 3620 mm
Total Height Of Machine Profile 2150 mm
Feeder Unit Length 2170 mm
Die Cutting Unit Length 1256 mm
Stamping/Scrapping Unit Length 915 mm
Take-up Unit Length 1140 mm
Unit Width 1920 mm
Footrest Width 1700 mm
Paper Delivery Aisle Space 2500 mm
Aisle Width Behind Machine 1200 mm
Exit Doorway Space 2000 mm
Net Weight 13 t
Package Size Long 5700 mm
Package Size Width 2080 mm
Package Size Height 2300 mm

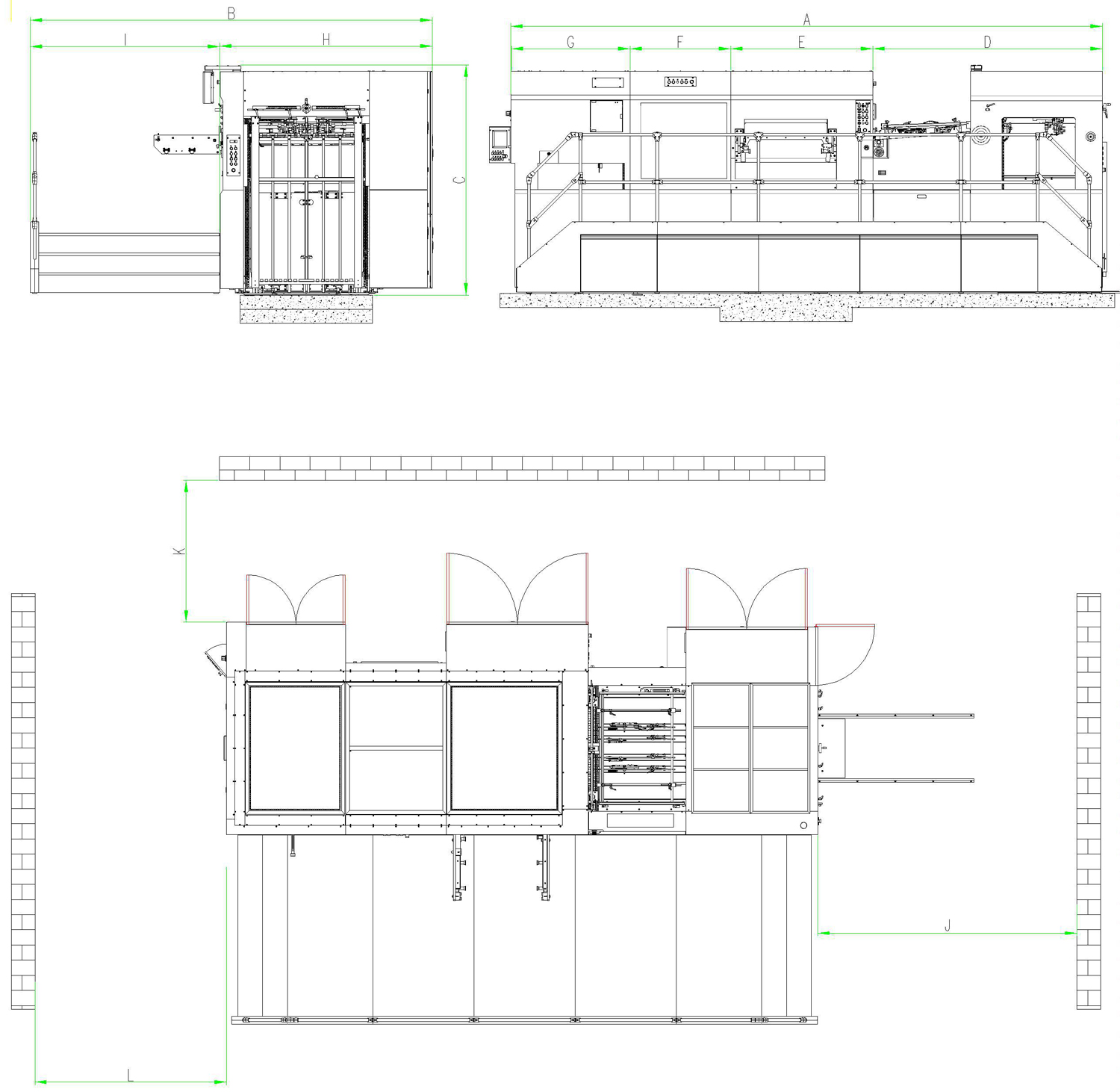

Installation Diagram
