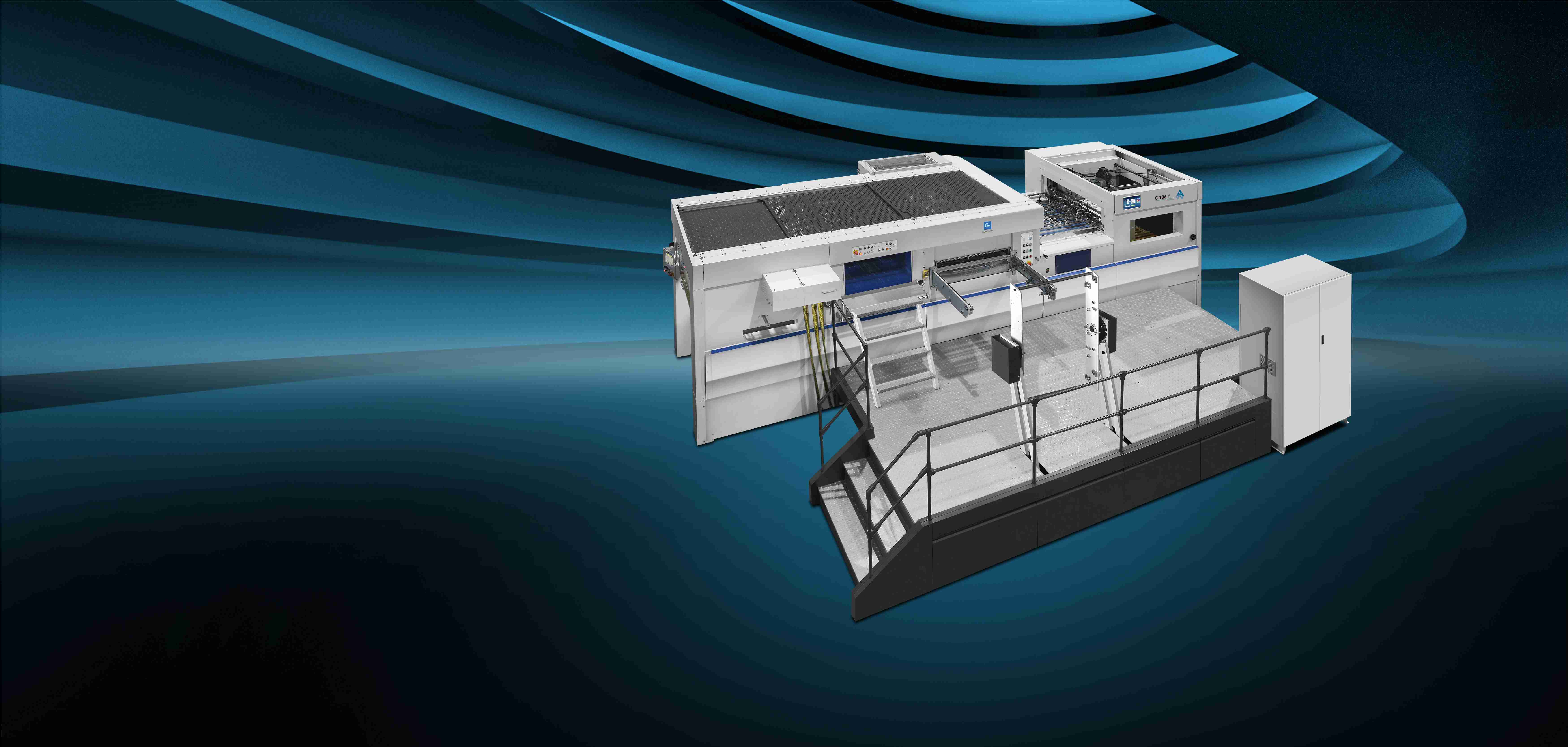

C106Y Single station hot stamping die cutting machine

C106Y

Product Comparison

Product Overview

All-weather production: virtually no downtime due to foil breakageNo adjustments required during productionUnique ergonomic design reduces setup time.

Outstanding versatility: the application of hot stamping, embossing and holographic patterns allows stamping of a wide range of materials, including diffraction stamping with complex structural images.

Individually controlled temperature zones: The machine features 20 independently controlled temperature zones that can be individually heated and temperature controlled to realize energy savings.

Time-saving ergonomics: fast changeover from stamping to die-cutting with virtually no downtime due to foil breakage Equipped with a dedicated system for efficient production data management.

User-friendly operation interface: 19-inch high-definition touch screen is used in the stamping part, all settings as well as functions can be easily realized by touching Based on the special knowledge of the equipment, the characteristic operation and control system is developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

Original Japanese high quality dental tablets with unrivaled durability.

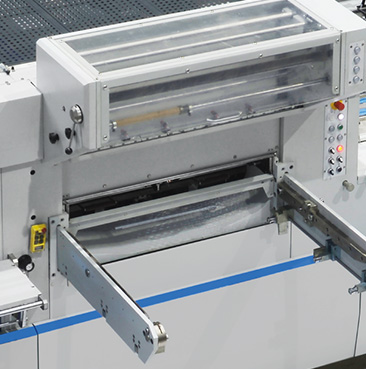

Conveyor belts and anti-static steel plates ensure ideal material transfer synchronization units provide high quality control of paper arrival at the front gauge and reduce downtime.

Horizontal hot stamping up to two horizontal hot stamping (optional).

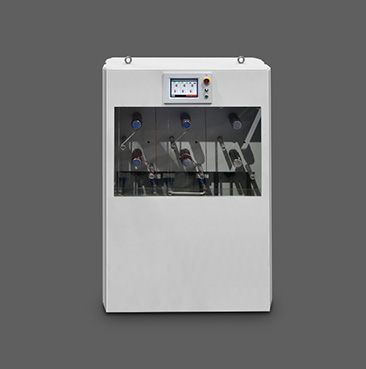

Automatic Foil Rewinder WFR-280 is equipped with an automatic 6-axis servo foil rewinding machine with 10.4” LED touch screen (optional).

Parameters

Machine Parameter:C106Y

Commencement

Model Number C106Y
Maximum Die-cutting Width 1045*745mm
Maximum Stamping Area 1040*740mm
Bite Blank Range 9-17mm
Maximum Die Cutting Pressure 350 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 7500 sheets/hour
Maximum Stamping Speed 6500 sheets/hour
Maximum Holographic And Laser Stamping Speeds 5500 sheets/hour
Heating Area 20 heating zones with temperatures from 10° to 200°.
Height Of Infeed Stack 1600mm
Stack Height 1350mm
Main Motor Power 11kw
Power Of The Whole Machine 46kw
Total Weight 21 tons
Exterior Dimensions 6264*4850*2580mm
Maximum Gold Foil Size In Longitudinal Direction Φ250mm
Air Requirements 6-8Bar;600L/min
Maximum Holographic Stamping Speed
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy
Maximum Horizontal Gold Foil Size
Mounting Parameters:C106Y

Commencement

Total Length Of Machine Profile 6264 mm
Total Width Of Machine Profile 4350 mm
Total Height Of Machine Profile 2580 mm
Feeder Unit Length 2425 mm
Die Cutting Unit Length 1500 mm
Stamping/Scrapping Unit Length 1067 mm
Take-up Unit Length 1270 mm
Unit Width 2350 mm
Footrest Width 2000 mm
Paper Delivery Aisle Space 3000 mm
Aisle Width Behind Machine 1500 mm
Exit Doorway Space 2500 mm
Net Weight 20.5 t
Package Size Long 6500 mm
Package Size Width 2300 mm
Package Size Height 2530 mm

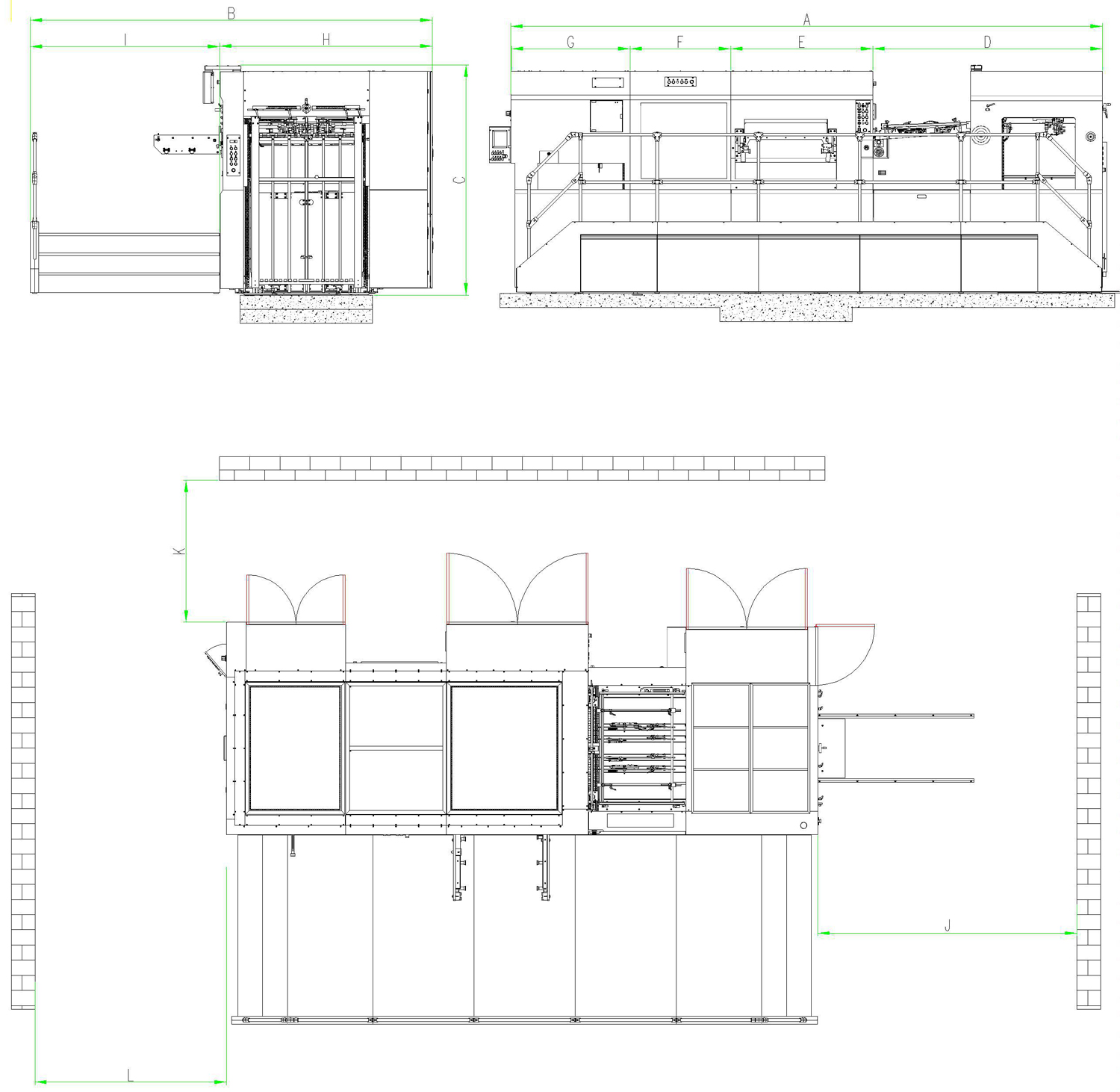

Installation Diagram
