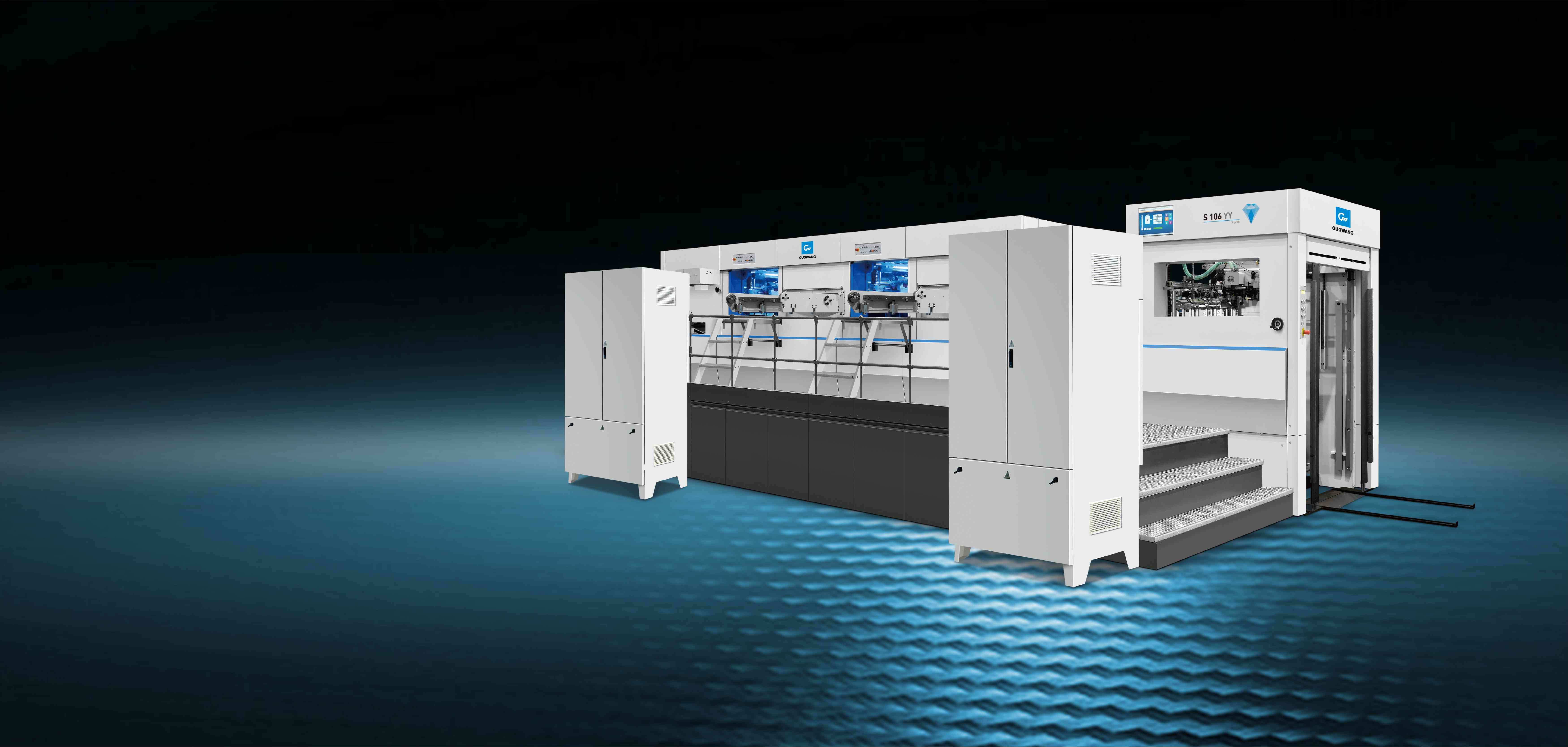

S106YY Duplex Automatic Foil Stamping and Die-cutting Machine

S106YY

Product Comparison

Product Overview

Safety: perfect safety monitoring system, real-time protection of operators and equipment, eliminating your concerns about safety.

Outstanding versatility: the application of hot stamping, embossing and holographic patterns can be stamped on a variety of materials, including diffraction stamping with complex structural images.

Power: The powerful and reliable drive system ensures that the machine has a surge of power from start to finish.

Time-saving ergonomics: fast changeover from stamping to die-cutting with virtually no downtime due to foil breakage Equipped with a dedicated system for efficient production data management.

User-friendly operation interface: The stamping area is equipped with a 19-inch high-definition touch screen, and all settings and functions can be easily realized by touch. Based on the special knowledge of the equipment, a characteristic operation and control system has been developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

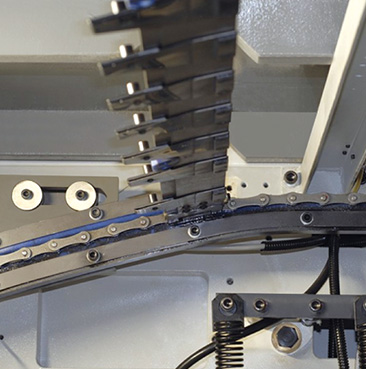

Original Japanese high quality dental tablets with unrivaled durability.

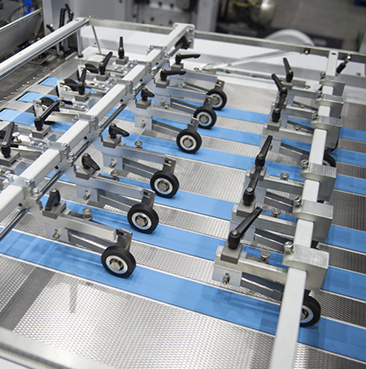

Conveyor belts and anti-static steel plates ensure ideal material transfer synchronization units provide high quality control of paper arrival at the front gauge and reduce downtime.

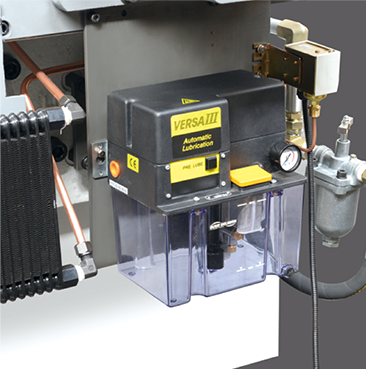

The automatic lubrication system allows you to adjust the refueling intervals and the amount of refueling in the system via a touch screen.

Easier operation can effectively avoid the waste of downtime caused by human error.

Parameters

Machine Parameter:S106YY

Commencement

Model Number S106YY
Maximum Die-cutting Width 1045*745mm
Maximum Stamping Area 1040*740mm
Bite Blank Range 7-17mm
Maximum Die Cutting Pressure Pressure of the first unit: 550 tons; pressure of the second unit: 320 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 5500 sheets/hour
Maximum Stamping Speed 5000 sheets/hour
Maximum Holographic And Laser Stamping Speeds 5000 sheets/hour
Heating Area 20 heating zones with temperatures from 30° to 200°.
Height Of Infeed Stack 1600mm
Stack Height 1350mm
Main Motor Power 22kw
Power Of The Whole Machine 85kw
Total Weight 42 tons
Exterior Dimensions 8500*5400*2600mm
Maximum Gold Foil Size In Longitudinal Direction Φ250mm
Air Requirements 6-8Bar;600L/min
Maximum Holographic Stamping Speed
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy
Maximum Horizontal Gold Foil Size
Mounting Parameters:S106YY

Commencement

Total Length Of Machine Profile
Total Width Of Machine Profile
Total Height Of Machine Profile
Feeder Unit Length
Die Cutting Unit Length
Stamping/Scrapping Unit Length
Take-up Unit Length
Unit Width
Footrest Width
Paper Delivery Aisle Space
Aisle Width Behind Machine
Exit Doorway Space
Net Weight
Package Size Long
Package Size Width
Package Size Height
