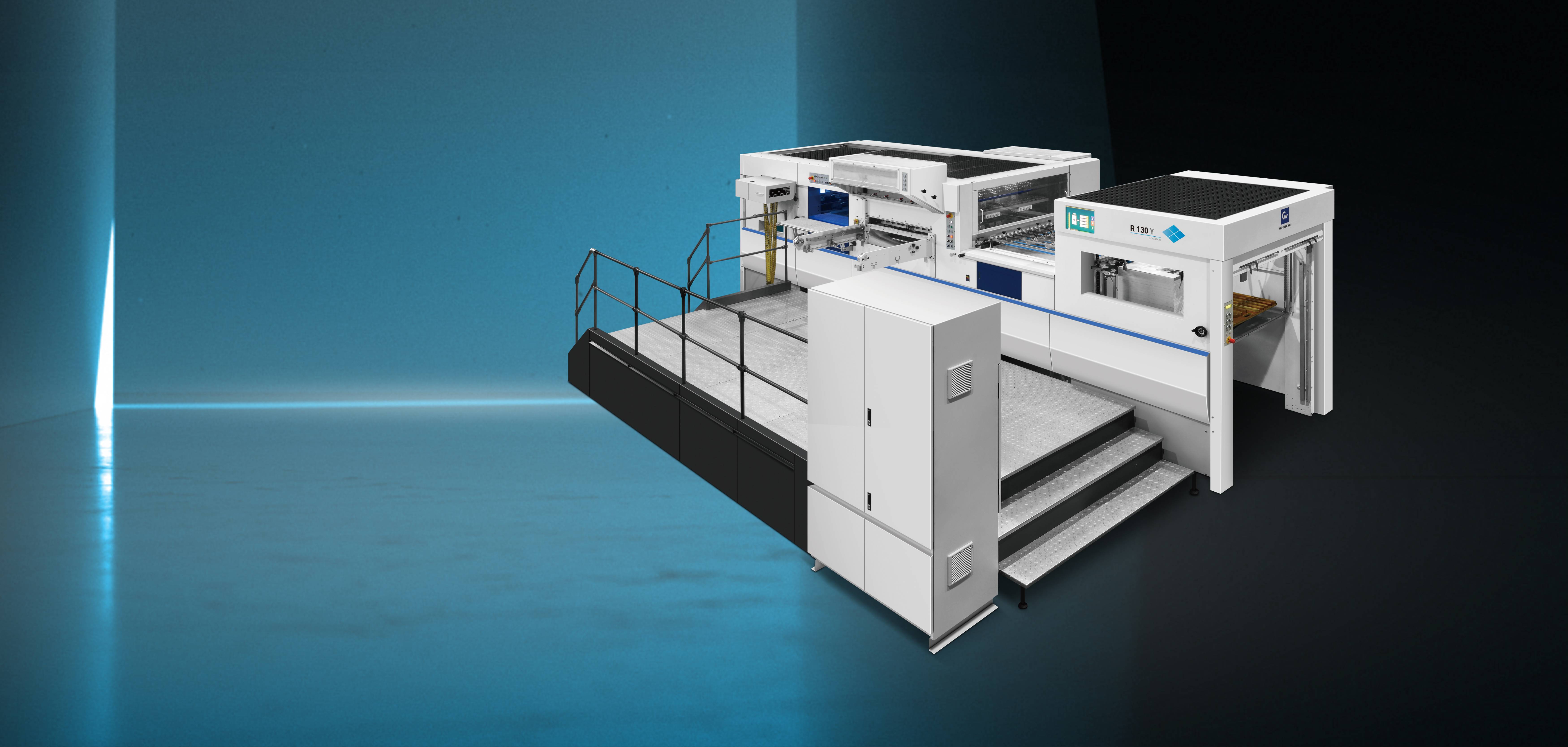

R130Y Automatic Die-cutting and Stamping Machine

R130Y

Product Comparison

Product Overview

Superior foil stamping and embossing: This foil stamping machine is designed to meet all the qualities you expect: excellent precision, exceptional productivity and outstanding product quality - everything you need to simply get brilliant results.

Outstanding versatility: the application of hot stamping, embossing and holograms allows stamping of a wide range of materials, including diffraction stamping with complex structural images.

Diversified product range: a single machine can fulfill your stamping and die-cutting needs and can help you build up your stamping work orders while being used daily as a die-cutting machine.

Round-the-clock production: Stable foil feeding structure, no need for adjustments during production, unique ergonomic design to shorten setup time.

Humanized operation interface: the foil stamping part adopts 19” HD touch screen, all the settings as well as functions can be easily realized by touching based on the special knowledge of the equipment, the operation and control system with special features is developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

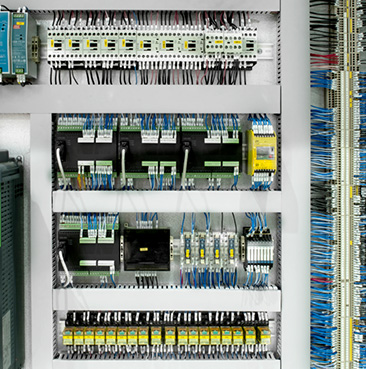

Safety control system in accordance with EU CE standard, real-time protection of operator's safety.

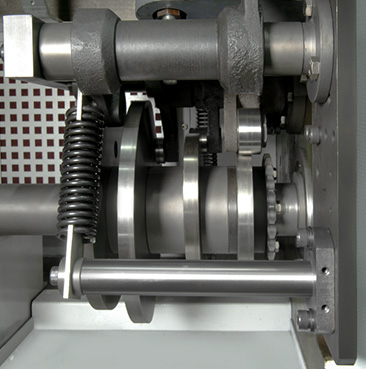

The redesigned cam structure makes the machine run smoother and more smoothly.

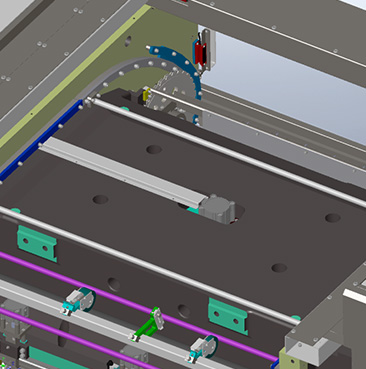

Easier to operate, can effectively avoid human error caused by the waste of downtime.

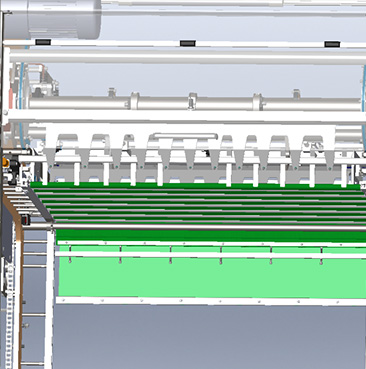

It makes the honeycomb board and heating board fit more closely, with high heat transfer efficiency and stable temperature.

Parameters

Machine Parameter:R130Y

Commencement

Model Number R130Y
Maximum Die-cutting Width 1285*935mm
Maximum Stamping Area 1260*920mm
Bite Blank Range 9-17mm
Maximum Die Cutting Pressure 450 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 6500 sheets/hour
Maximum Stamping Speed 5000 sheets/hour
Maximum Holographic And Laser Stamping Speeds
Heating Area 16 heating zones with temperatures from 30° to 200°.
Height Of Infeed Stack 1600mm
Stack Height 1350mm
Main Motor Power 15kw
Power Of The Whole Machine 53kw
Total Weight 28.5 tons Export: 30 tons (ton)
Exterior Dimensions 7135*5660*2480mm
Maximum Gold Foil Size In Longitudinal Direction Φ300mm
Air Requirements 6-8Bar;650L/min
Maximum Holographic Stamping Speed 4000 sheets/hour
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy
Maximum Horizontal Gold Foil Size
Mounting Parameters:R130Y

Commencement

Total Length Of Machine Profile 7135 mm
Total Width Of Machine Profile 5660 mm
Total Height Of Machine Profile 2430 mm
Feeder Unit Length 2800 mm
Die Cutting Unit Length 1720 mm
Stamping/Scrapping Unit Length 1180 mm
Take-up Unit Length 1430 mm
Unit Width 2460 mm
Footrest Width 3000 mm
Paper Delivery Aisle Space 3500 mm
Aisle Width Behind Machine 2000 mm
Exit Doorway Space 2500 mm
Net Weight 30 t
Package Size Long 7500 mm
Package Size Width 2800 mm
Package Size Height 2630 mm
