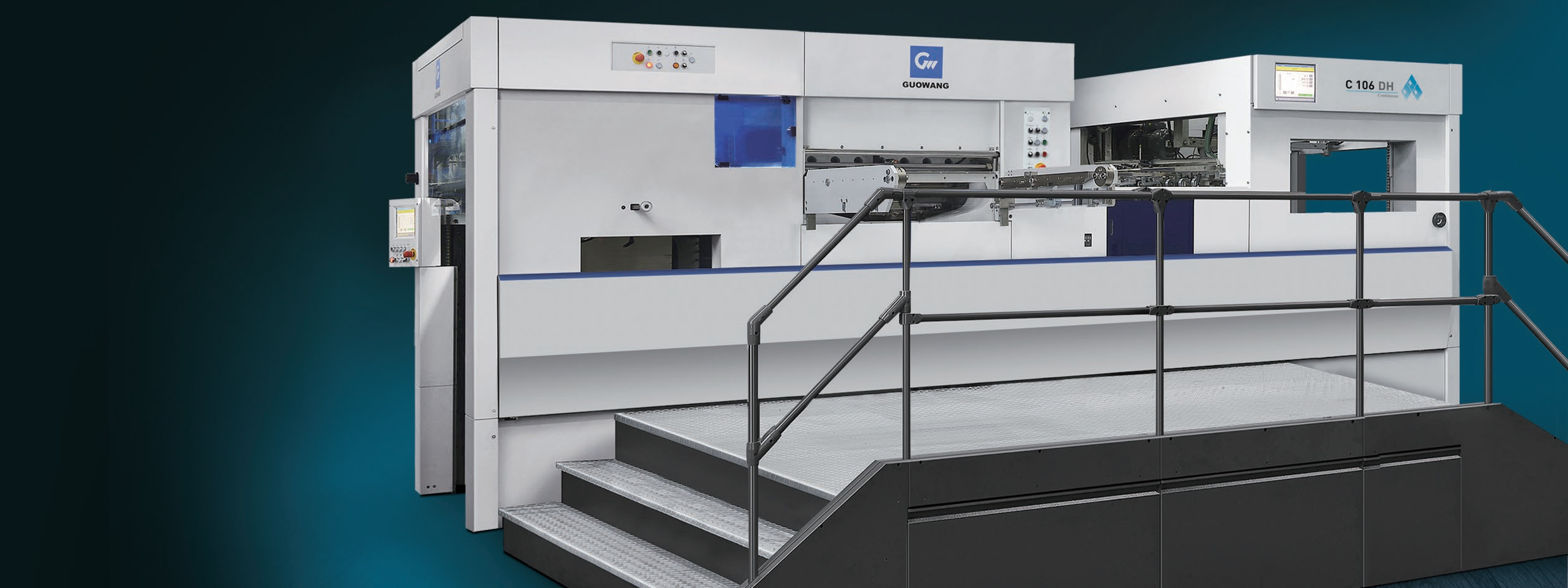

C106DH
Product Comparison
Parameters
Commencement
| Model Number | C106DH |
| Maximum Die-cutting Width | 1045*745mm |
| Bite Blank Range | 7-17mm |
| Maximum Die Cutting Pressure | 500-550 tons |
| Paper Specifications | White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm |
| Maximum Die Cutting Speed | 6000 sheets/hour |
| Heating Area | 20 temperature zones, heating temperature 30-200°C |
| Height Of Infeed Stack | Tray feed: 1600mm |
| Stack Height | Tray feed: 1350mm |
| Main Motor Power | 15kw |
| Power Of The Whole Machine | 35kw |
| Total Weight | 20.5 tons |
| Exterior Dimensions | 6-8bar；200L/min |
| Air Requirements | 5197*4250*2430mm |
| Die Cutting Accuracy |
Commencement
| Total Length Of Machine Profile | |
| Total Width Of Machine Profile | |
| Total Height Of Machine Profile | |
| Feeder Unit Length | |
| Die Cutting Unit Length | |
| Stamping/Scrapping Unit Length | |
| Take-up Unit Length | |
| Unit Width | |
| Footrest Width | |
| Paper Delivery Aisle Space | |
| Aisle Width Behind Machine | |
| Exit Doorway Space | |
| Net Weight | |
| Package Size Long | |
| Package Size Width | |
| Package Size Height |
