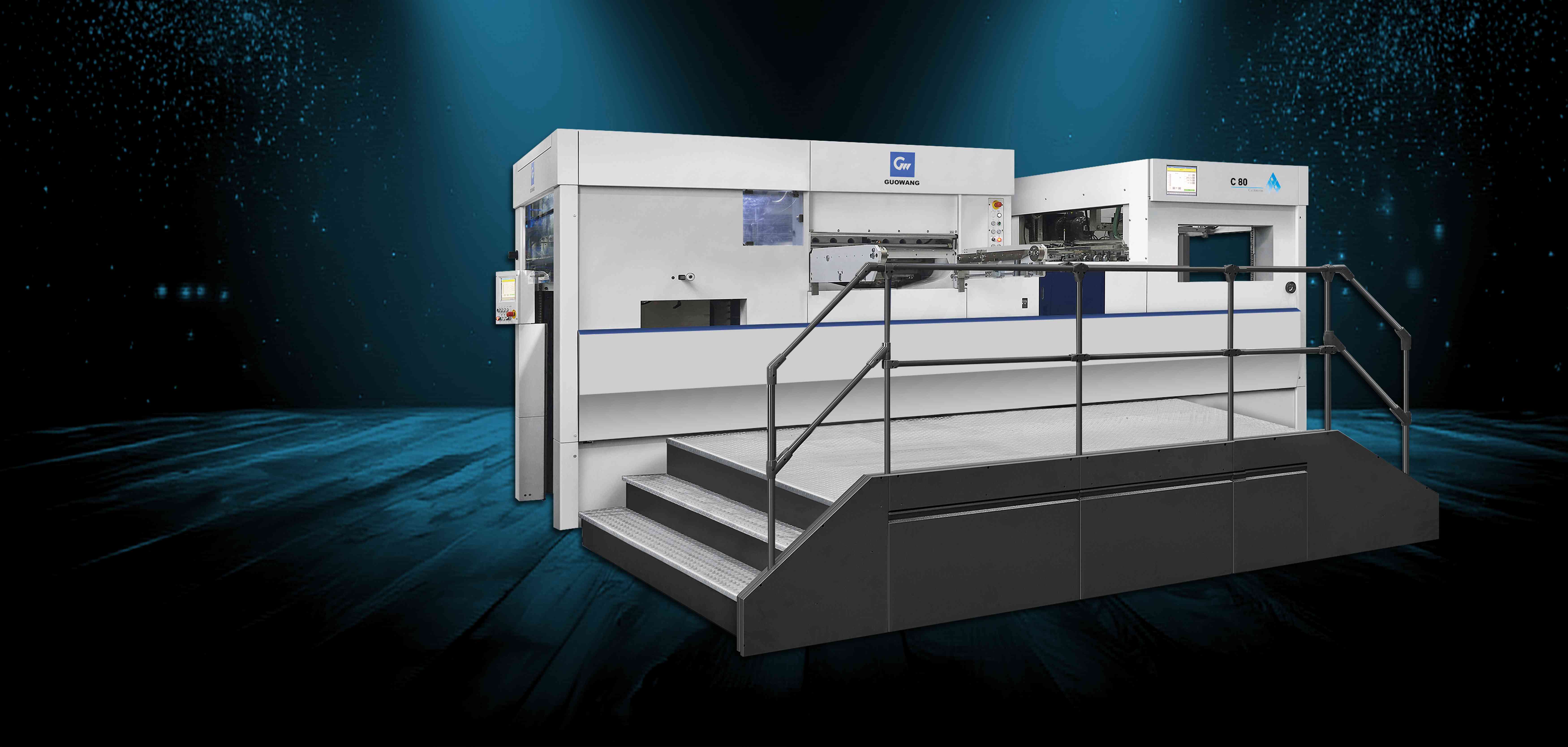

C80 Automatic Die Cutting Machine

C80

Product Comparison

Product Overview

No downtime production: less setup and order changeover time, resulting in increased throughput, intelligent infeed table and unique die-cut-to-print registration, greatly reducing feeder-related downtime.

Diversified product range: a single machine for all your die-cutting and embossing needs.

Efficient and cost-saving: fast changeover from die-cutting to waste removal for efficient production data management.

High-tech die cutting: for offset laminating and folding carton products, the high productivity of this die cutter can really increase your competitive advantage.

Humanized operation interface: the stamping part adopts 19-inch high-definition touch screen, all the settings and functions can be easily realized by touching based on the special knowledge of the equipment, the development of a characteristic operation and control system, simple, intuitive, easy to operate.

Contact Us

Product Highlights

Easier to operate, can effectively avoid human error, resulting in downtime waste.

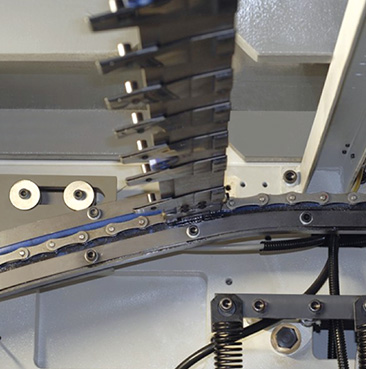

Original Japanese high quality dental tablets with unrivaled durability.

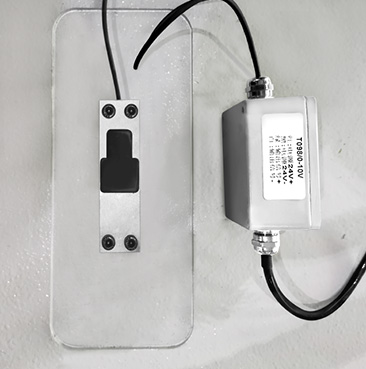

Real-time pressure detection to ensure safe operation of the machine (optional).

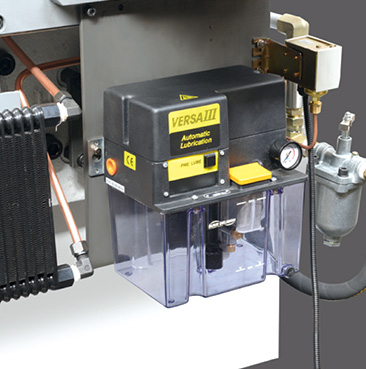

Automatic lubrication system with touch screen to adjust the refueling intervals and the amount of refueling in the system.

Parameters

Machine Parameter:C80

Commencement

Model Number C80
Maximum Die-cutting Width 800*600mm
Bite Blank Range 7-17mm
Maximum Die Cutting Pressure 150 tons
Paper Specifications White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm
Maximum Die Cutting Speed 7500 sheets/hour
Heating Area
Height Of Infeed Stack 1300mm
Stack Height 1050mm
Main Motor Power 7.5kw
Power Of The Whole Machine 13kw
Total Weight
Exterior Dimensions
Air Requirements
Die Cutting Accuracy
Mounting Parameters:C80

Commencement

Total Length Of Machine Profile 4595 mm
Total Width Of Machine Profile 3620 mm
Total Height Of Machine Profile 2150 mm
Feeder Unit Length 2170 mm
Die Cutting Unit Length 1256 mm
Stamping/Scrapping Unit Length
Take-up Unit Length 1140 mm
Unit Width 1920 mm
Footrest Width 1700 mm
Paper Delivery Aisle Space 2500 mm
Aisle Width Behind Machine 800 mm
Exit Doorway Space 2000 mm
Net Weight 11.8 t
Package Size Long 4790 mm
Package Size Width 2080 mm
Package Size Height 2300 mm

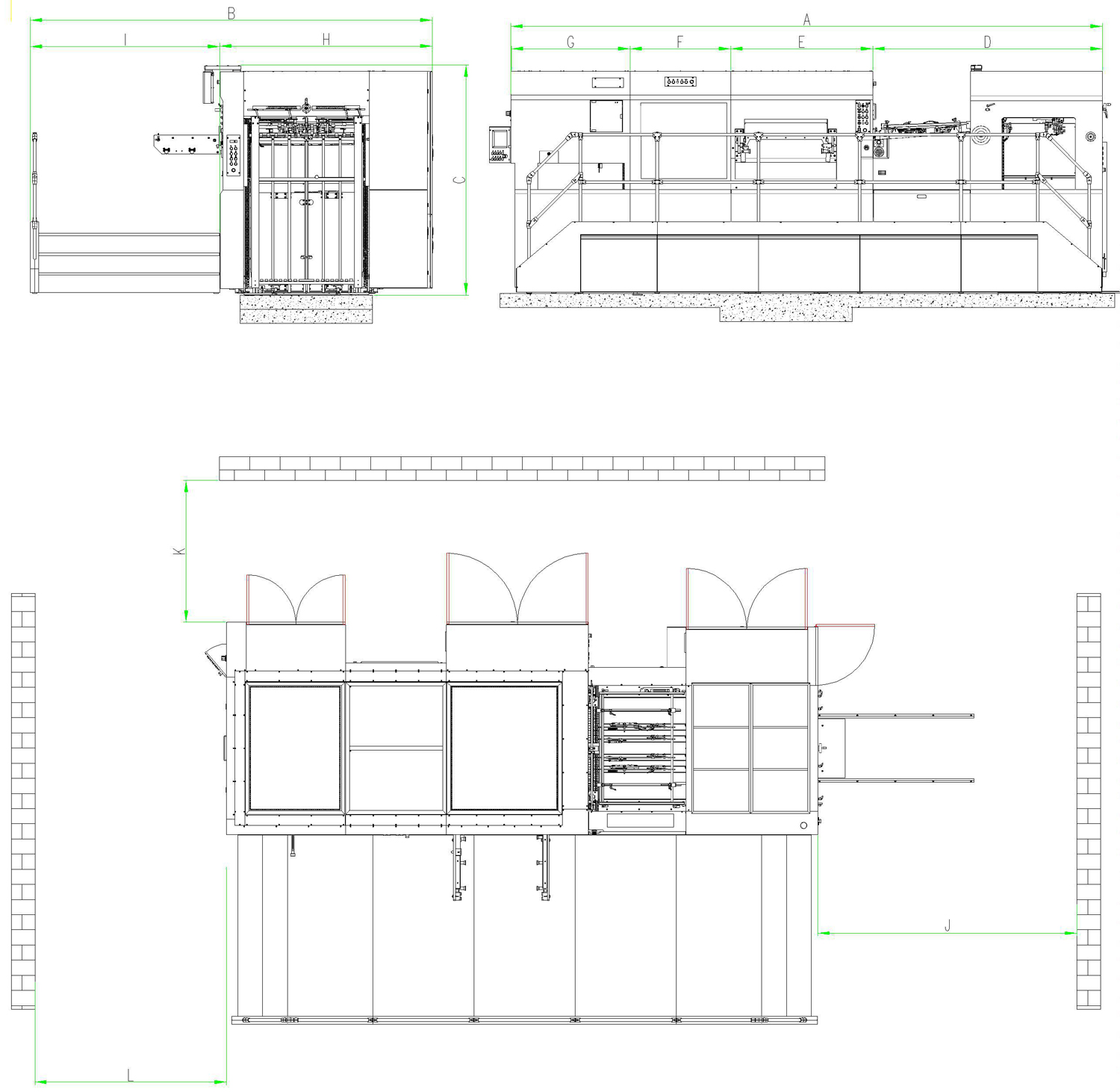

Installation Diagram
