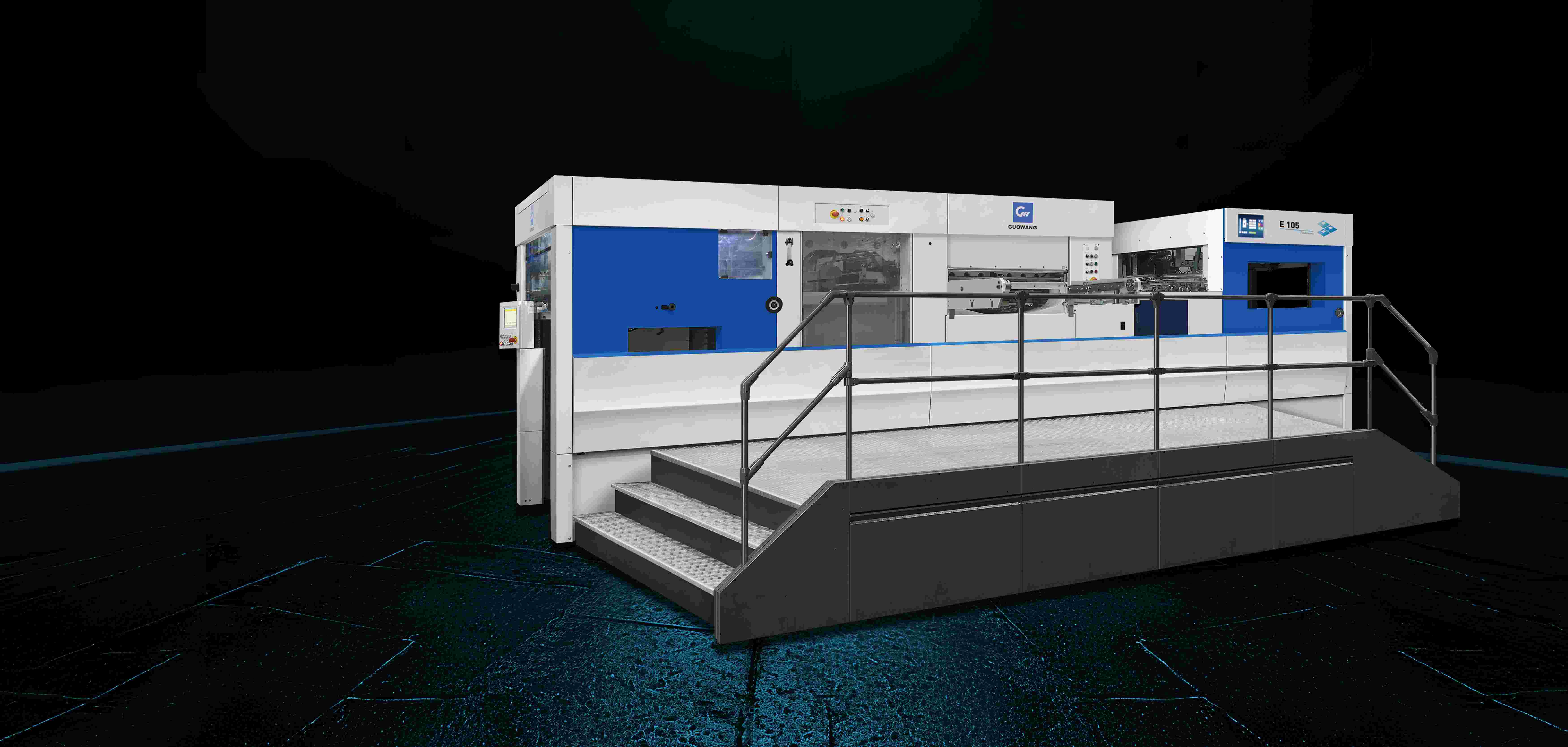

E105
Product Comparison
Parameters
Commencement
| Model Number | E105 |
| Maximum Die-cutting Width | 1045*745mm |
| Bite Blank Range | 9-17mm |
| Maximum Die Cutting Pressure | 300 tons |
| Paper Specifications | White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm |
| Maximum Die Cutting Speed | 7500 sheets/hour |
| Heating Area | |
| Height Of Infeed Stack | 1600mm |
| Stack Height | 1350mm |
| Main Motor Power | 11kw |
| Power Of The Whole Machine | 17kw |
| Total Weight | 17 tons |
| Exterior Dimensions | 5055*4250*2430mm |
| Air Requirements | 6-8bar；200L/min |
| Die Cutting Accuracy |
Commencement
| Total Length Of Machine Profile | 5200 mm |
| Total Width Of Machine Profile | 4120 mm |
| Total Height Of Machine Profile | 2330 mm |
| Feeder Unit Length | 2550 mm |
| Die Cutting Unit Length | 1330 mm |
| Stamping/Scrapping Unit Length | |
| Take-up Unit Length | 1320 mm |
| Unit Width | 2240 mm |
| Footrest Width | 1890 mm |
| Paper Delivery Aisle Space | 3000 mm |
| Aisle Width Behind Machine | 1500 mm |
| Exit Doorway Space | 2500 mm |
| Net Weight | 17 t |
| Package Size Long | 5110 mm |
| Package Size Width | 2300 mm |
| Package Size Height | 2530 mm |
