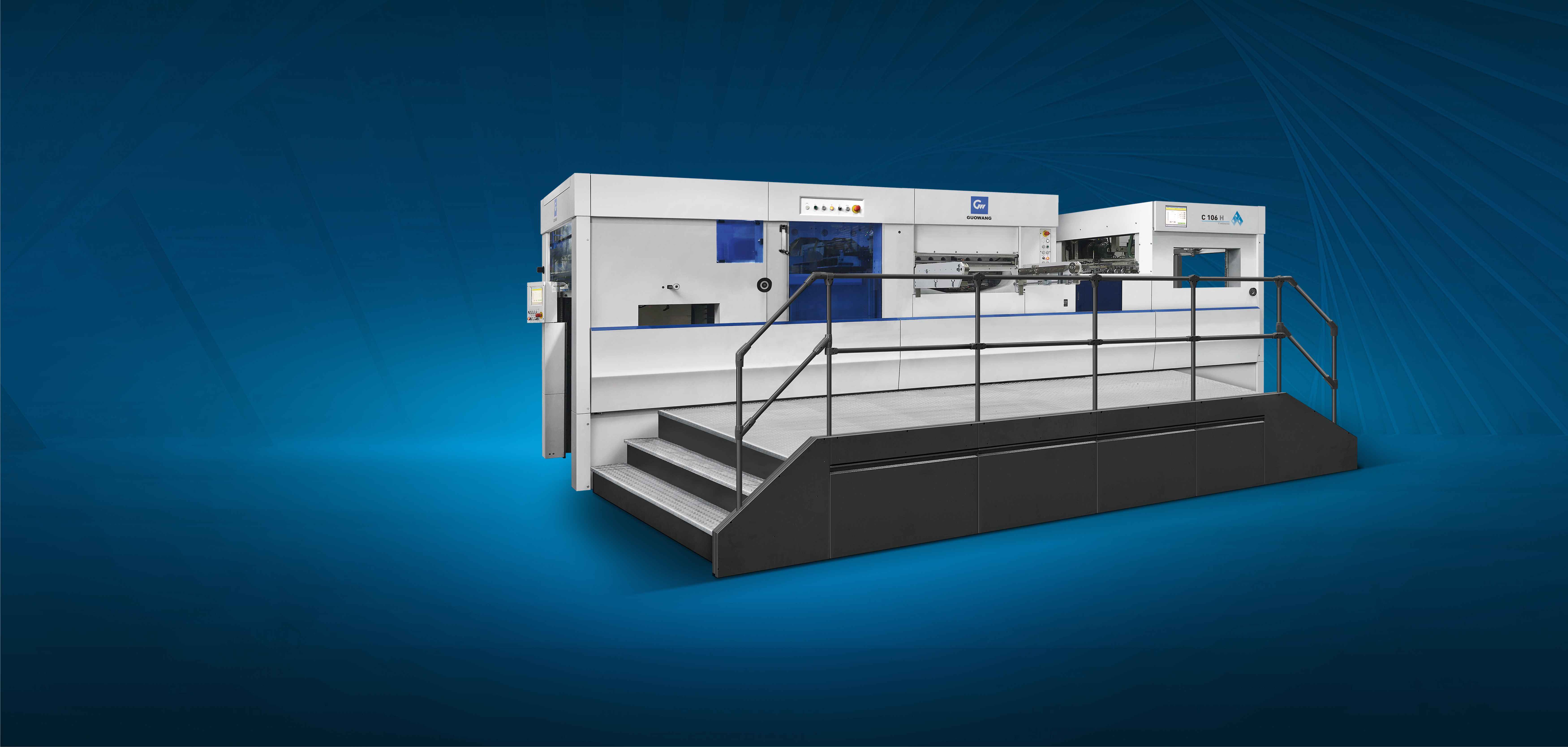

C106H
Product Comparison
Parameters
Commencement
| Model Number | C106H |
| Maximum Die-cutting Width | 1060*760mm |
| Bite Blank Range | 7-17mm |
| Maximum Die Cutting Pressure | 550 tons |
| Paper Specifications | White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm |
| Maximum Die Cutting Speed | 6000 sheets/hour |
| Heating Area | 20 temperature zones, heating temperature 20-180°C |
| Height Of Infeed Stack | 1600mm |
| Stack Height | 1350mm |
| Main Motor Power | 15kw |
| Power Of The Whole Machine | 21kw |
| Total Weight | |
| Exterior Dimensions | |
| Air Requirements | |
| Die Cutting Accuracy |
Commencement
| Total Length Of Machine Profile | 5197 mm |
| Total Width Of Machine Profile | 4250 mm |
| Total Height Of Machine Profile | 2430 mm |
| Feeder Unit Length | 2425 mm |
| Die Cutting Unit Length | 1500 mm |
| Stamping/Scrapping Unit Length | |
| Take-up Unit Length | 1270 mm |
| Unit Width | 2250 mm |
| Footrest Width | 2000 mm |
| Paper Delivery Aisle Space | 3000 mm |
| Aisle Width Behind Machine | 1000 mm |
| Exit Doorway Space | 2500 mm |
| Net Weight | 17.5 t |
| Package Size Long | 5290 mm |
| Package Size Width | 2300 mm |
| Package Size Height | 2530 mm |

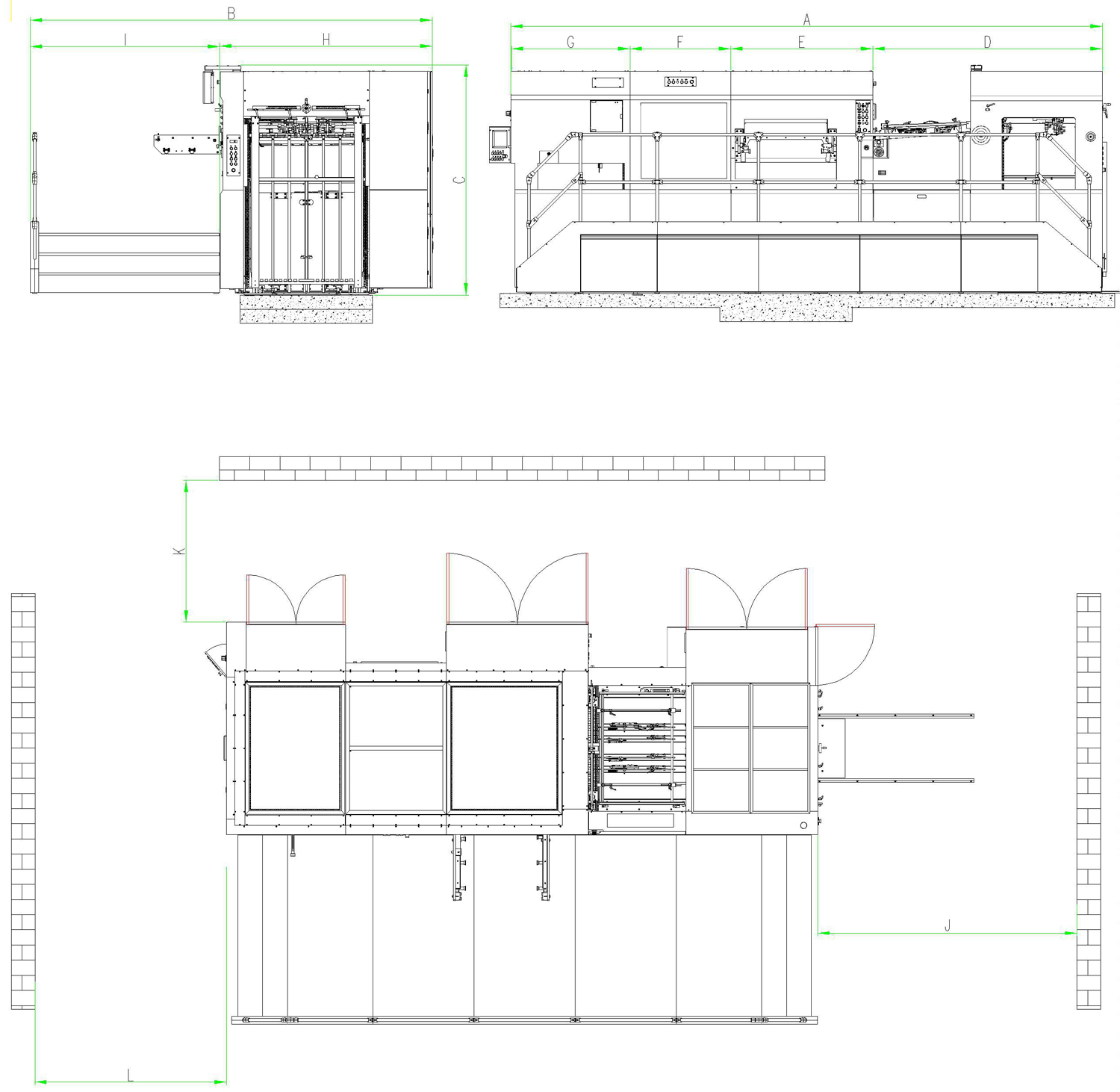

Installation Diagram
