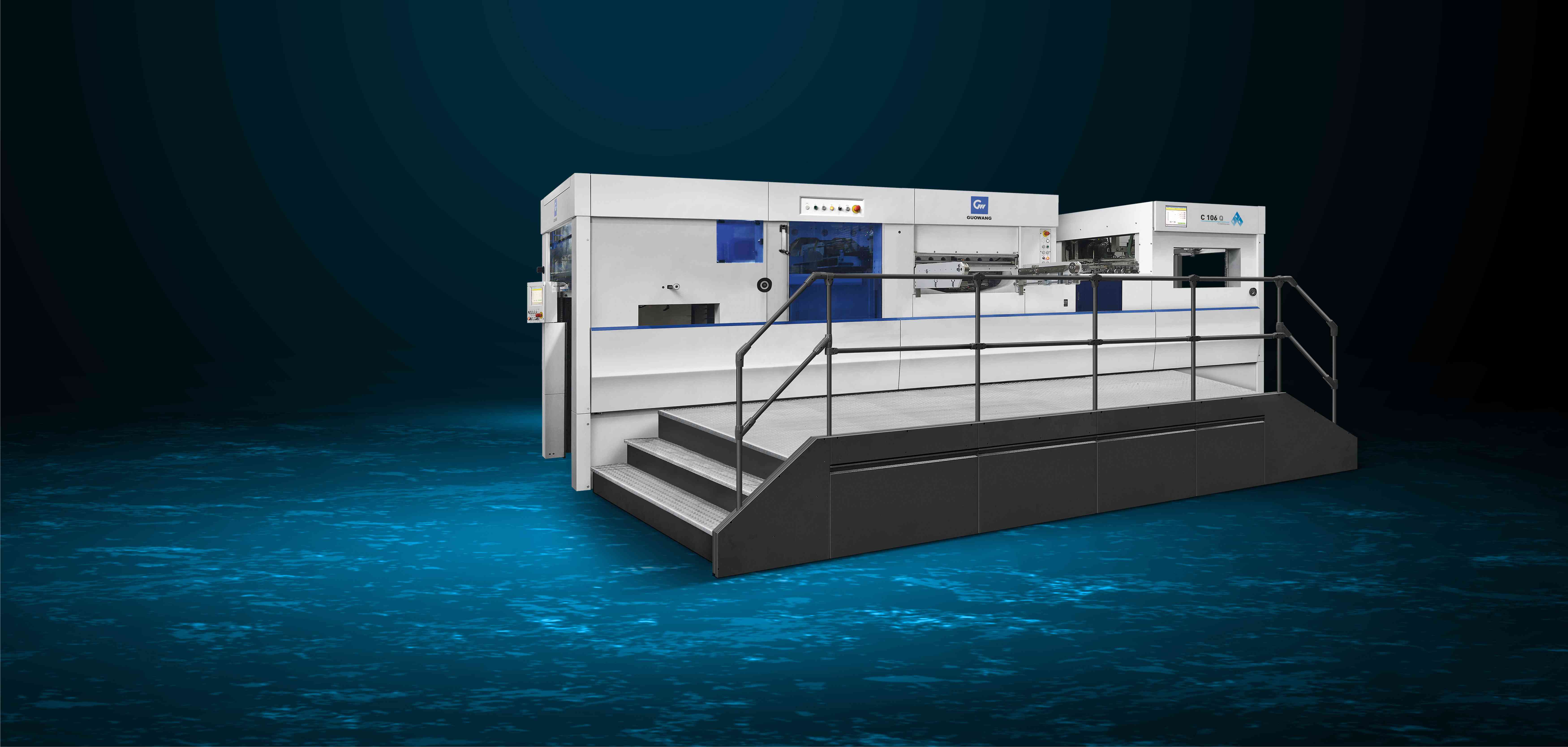

C106Q
Product Comparison
Parameters
Commencement
| Model Number | C106Q |
| Maximum Die-cutting Width | 1045*745mm |
| Bite Blank Range | 9-17mm |
| Maximum Die Cutting Pressure | 300 tons |
| Paper Specifications | White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm |
| Maximum Die Cutting Speed | 7500 sheets/hour |
| Heating Area | |
| Height Of Infeed Stack | 1600mm |
| Stack Height | 1350mm |
| Main Motor Power | 11kw |
| Power Of The Whole Machine | 17kw |
| Total Weight | 18.5 tons |
| Exterior Dimensions | 6045*4250*2430mm |
| Air Requirements | 6-8bar；200L/min |
| Die Cutting Accuracy |
Commencement
| Total Length Of Machine Profile | 6045 mm |
| Total Width Of Machine Profile | 4250 mm |
| Total Height Of Machine Profile | 2430 mm |
| Feeder Unit Length | 2475 mm |
| Die Cutting Unit Length | 1330 mm |
| Stamping/Scrapping Unit Length | 990 mm |
| Take-up Unit Length | 1250 mm |
| Unit Width | 2250 mm |
| Footrest Width | 2000 mm |
| Paper Delivery Aisle Space | 3000 mm |
| Aisle Width Behind Machine | 1500 mm |
| Exit Doorway Space | 2500 mm |
| Net Weight | 18.5 t |
| Package Size Long | 6500 mm |
| Package Size Width | 2300 mm |
| Package Size Height | 2530 mm |

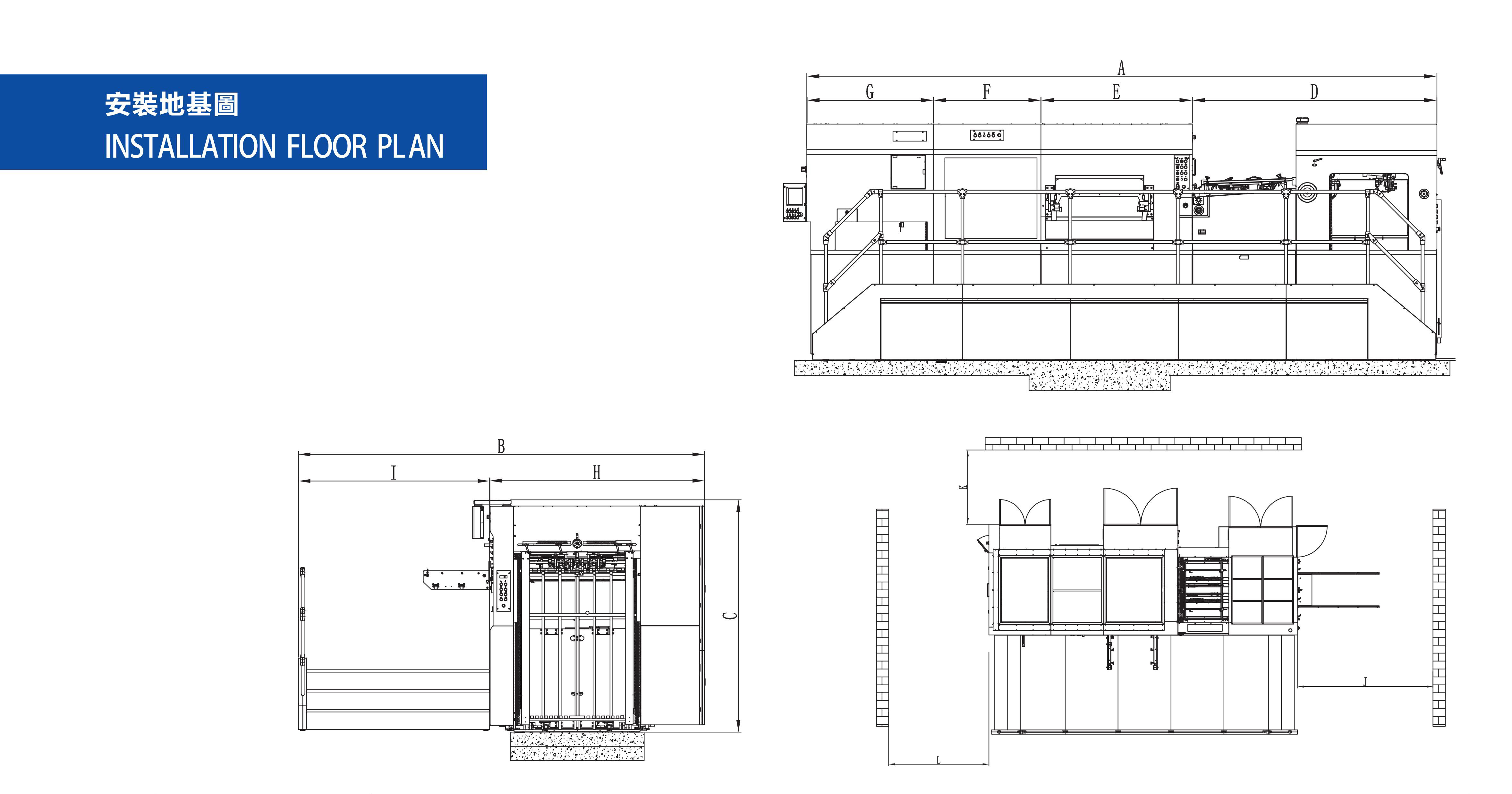

Installation Diagram
