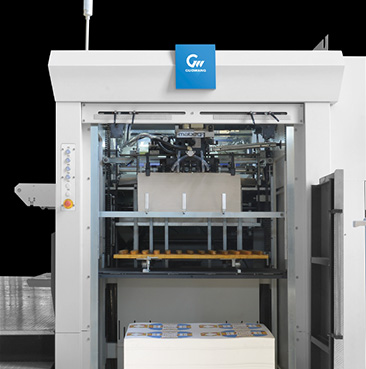

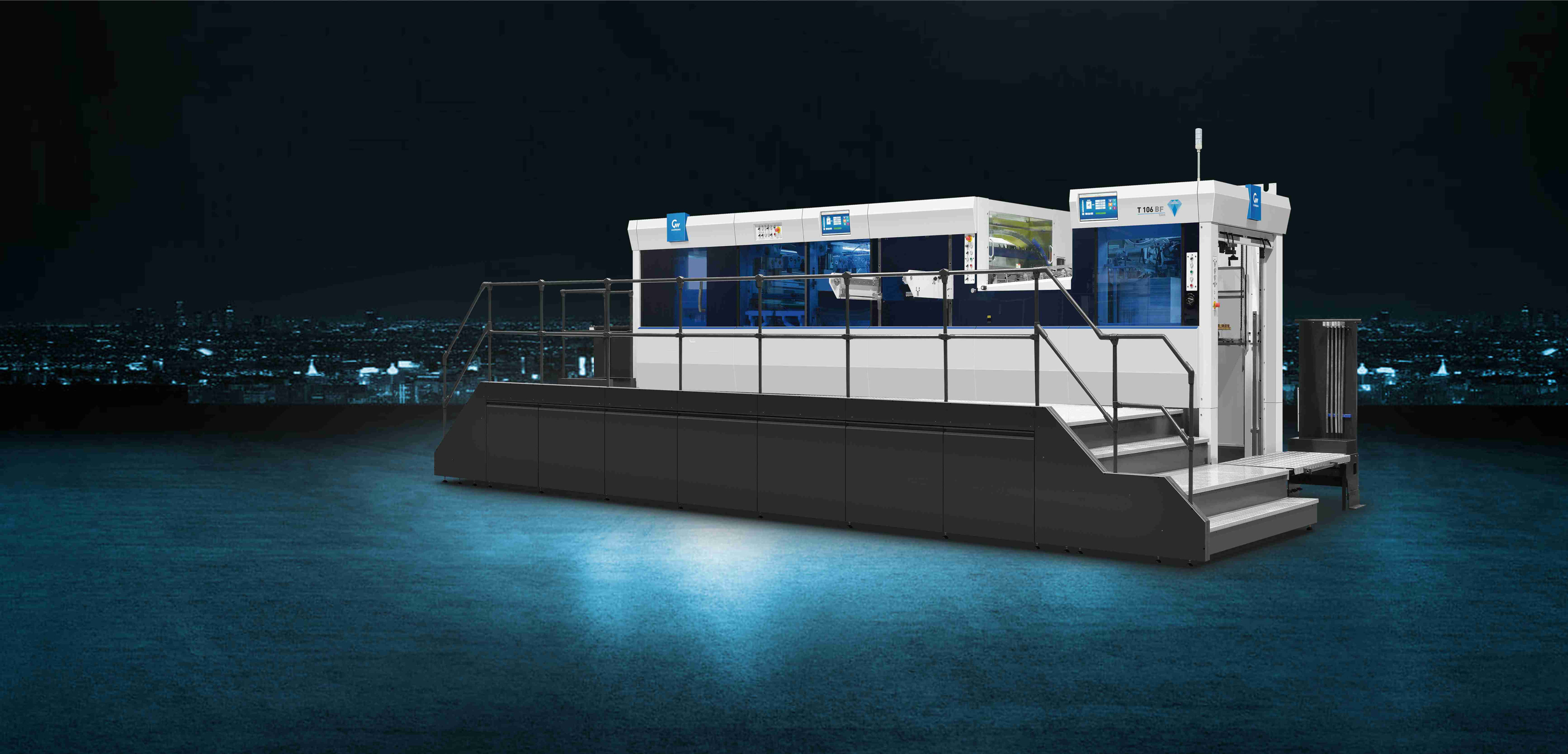

T106BF Automatic Die Cutting Machine

T106BF

Product Comparison

Product Overview

Premium embossing and die-cutting: This machine is designed to meet all the qualities you expect: excellent precision, exceptional productivity and outstanding product quality - everything you need to simply get brilliant results.

Die-cutting and scrap conversion: one machine is versatile, enabling flexible conversion between die-cutting and scrap.

Profitable, reliable and long-lasting: excellent price/performance ratio, durable and reliable machine.

Die-cutting and waste removal in a single pass: Immediate generation of high-quality stacked and counted batches, significant reduction of workload and associated costs, complete paper collection for short non-repeating orders.

User-friendly operation interface: the stamping part is equipped with a 19-inch HD touch screen, all settings as well as functions can be easily realized by touch Based on the special knowledge of the equipment, a characteristic operation and control system has been developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

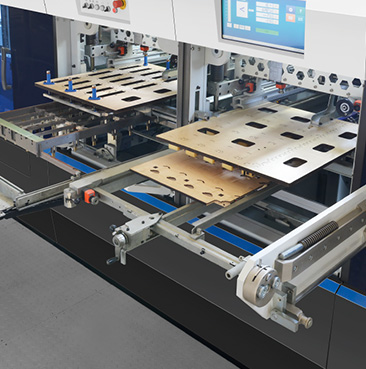

High-quality flyer with 4 suction suction cups and 4 feeding suction cups for smooth transportation of paper or sheets of various materials.

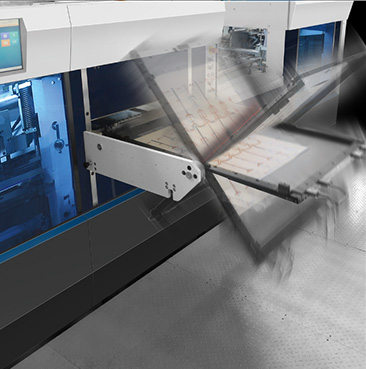

Adopt center positioning and quick locking plate device.

Adopting Japan Fuji servo motor to realize precise and stable control of die-cutting pressure; 19-inch touch screen realizes precise adjustment of pressure, and the adjustment amount is accurate to 0.01mm.

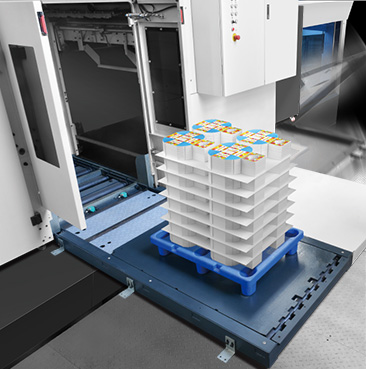

The automatic stack transfer, which transfers the working pallets to the finished product take-up area and then transfers the empty pallets to the take-up area of the machine for waiting, reduces manual intervention and ensures uninterrupted conveying work.

Parameters

Machine Parameter:T106BF

Commencement

Model Number T106BF
Maximum Die-cutting Width 1060*745mm
Bite Blank Range 7-17mm
Maximum Die Cutting Pressure 350 tons
Paper Specifications White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm
Maximum Die Cutting Speed 7500 sheets/hour
Heating Area
Height Of Infeed Stack Tray infeed: 1800mm; Non-stop infeed: 1300mm
Stack Height Tray feed: 1400mm (full clear) Tray feed: 1500mm (full sheet)
Main Motor Power 18.5kw
Power Of The Whole Machine 26kw
Total Weight 23 tons
Exterior Dimensions
Air Requirements 6-8Bar;300L/min
Die Cutting Accuracy
Mounting Parameters:T106BF

Commencement

Total Length Of Machine Profile 9020 mm
Total Width Of Machine Profile 6055 mm
Total Height Of Machine Profile 2700 mm
Feeder Unit Length
Die Cutting Unit Length
Stamping/Scrapping Unit Length
Take-up Unit Length
Unit Width
Footrest Width
Paper Delivery Aisle Space 3000 mm
Aisle Width Behind Machine 2600 mm
Exit Doorway Space 2000 mm
Net Weight 23 t
Package Size Long 8000 mm
Package Size Width 2320 mm
Package Size Height 2950 mm
