Brand new veneers for unmatched durability

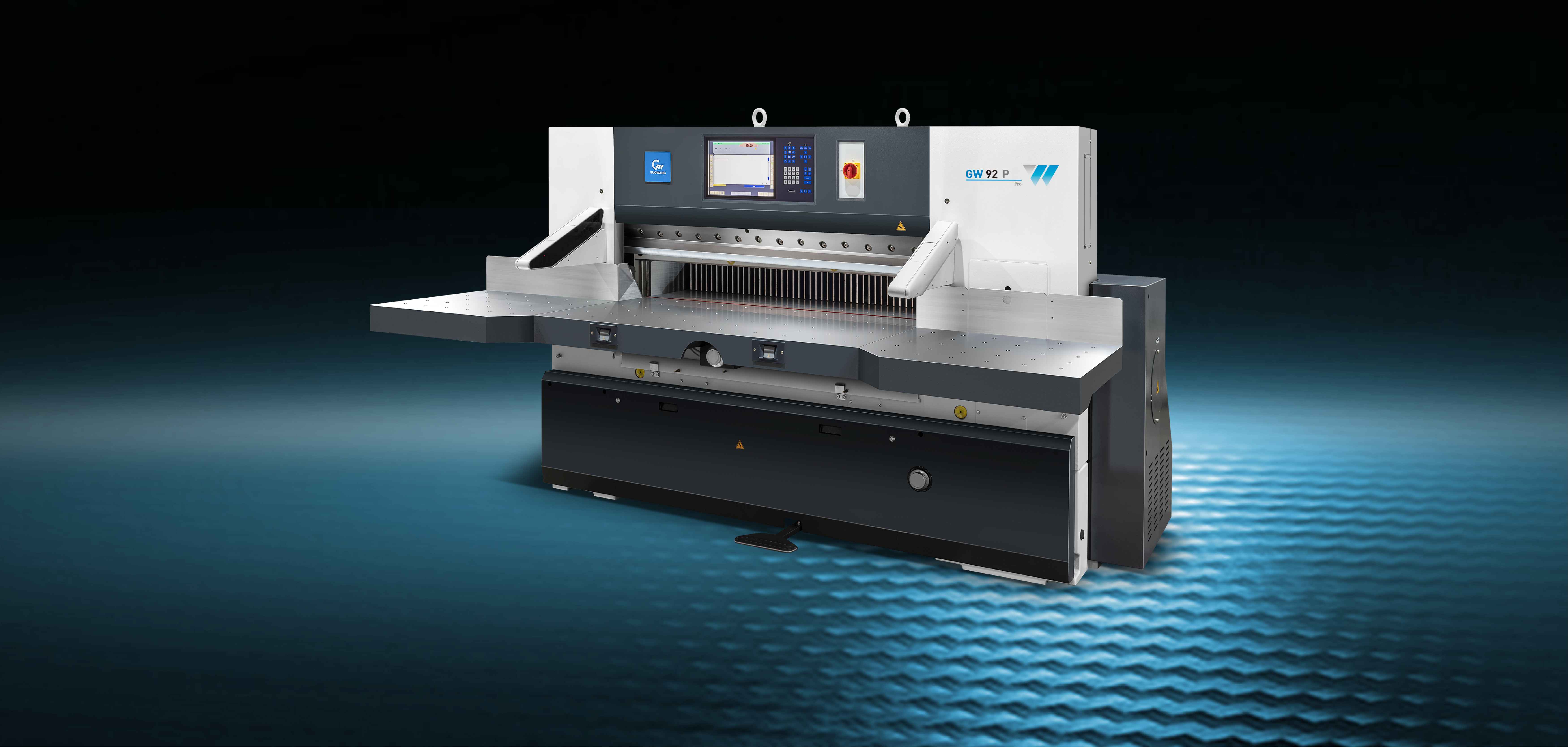

GW92P Paper Cutting Machine

GW92P

Product Comparison

Product Overview

Convenient maintenance: the hook-type knife loading structure makes the knife changing work simple and easy.

True-color display: the display adopts the 15-inch true-color LCD screen of Taiwan AUO, Inc. to ensure its service life.

Industrial computer: the computer part is Taiwan's industrial computer, which has reliable guarantee in performance and stability, and can realize multi-machine communication and remote computer management.

High-standard hydraulic system: adopts the double hydraulic dual-channel structure of the rapid pressurization system, in line with CE standards.

Humanized operation interface: the stamping part adopts 15-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching based on the special cognition of the equipment, the development of the operation and control system with characteristics, simple, intuitive and easy to operate.

Contact Us

Product Highlights

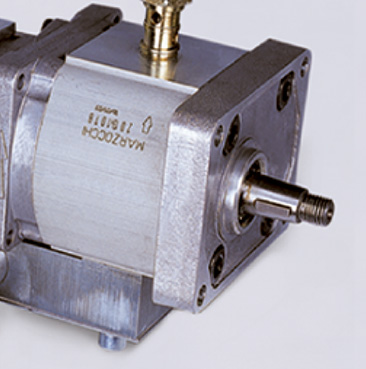

Italian hydraulic pumps.

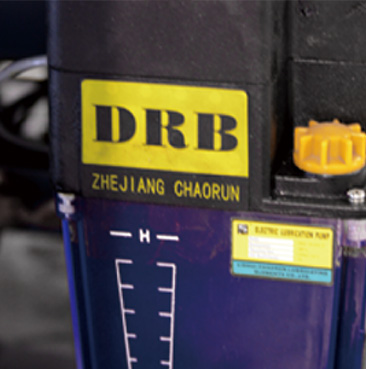

Automatic body lubrication device.

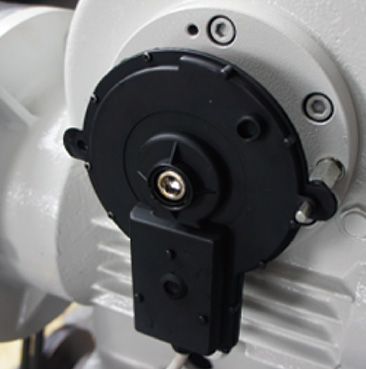

Electronic cams.

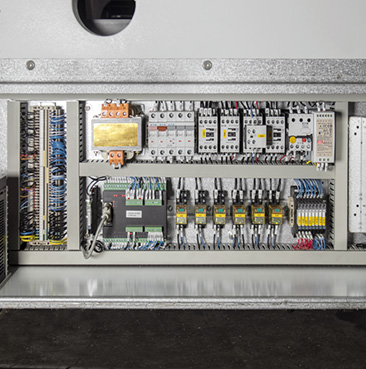

Electrical box.

Parameters

Machine Parameter:GW92P

Commencement

Model Number GW92P
Cutting Width 92/36.22 cm/inches
Cutting Height 13/5.12 cm/inches
Cutting Length 92/36.22 cm/inches
Mains Power 3 kw
Net Weight 2500/5500 kg/lbs
Machine Width 212/83.46 cm/inches (with side table) 203/79.9 cm/inches (without side table)
Machine Length 205/80.70 cm/inches
Machine Height 155/61.42 cm/inches
Length Of Front Table 69/27.17 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 150/330 dan/lbs
Maximum Platen Pressure 3000/7700 dan/lbs
Blade Specification (L*W*H) 12.7*127*1100 mm
Maximum Sharpenable Area 3/1.18 cm/inches
Minimum Cutting 2.5/1 cm/inches (without lever) 9/3.54 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 225*140*19 cm
Supply Voltage 361-399 V
Wire Thickness 2.5 ㎡
Feeding Speed
Mounting Parameters:GW92P

Commencement

Machine Profile Length 2070 mm
Machine Profile Width 2328 mm
High Machine Profile 1622 mm
Machine Foundation Length 700 mm
Machine Foundation Width 700 mm
Machine Foundation Thickness 150 mm
Fuselage Half-Width 822 mm
Net Weight 2.5 t
Package Size 2250*1400*1910 mm
