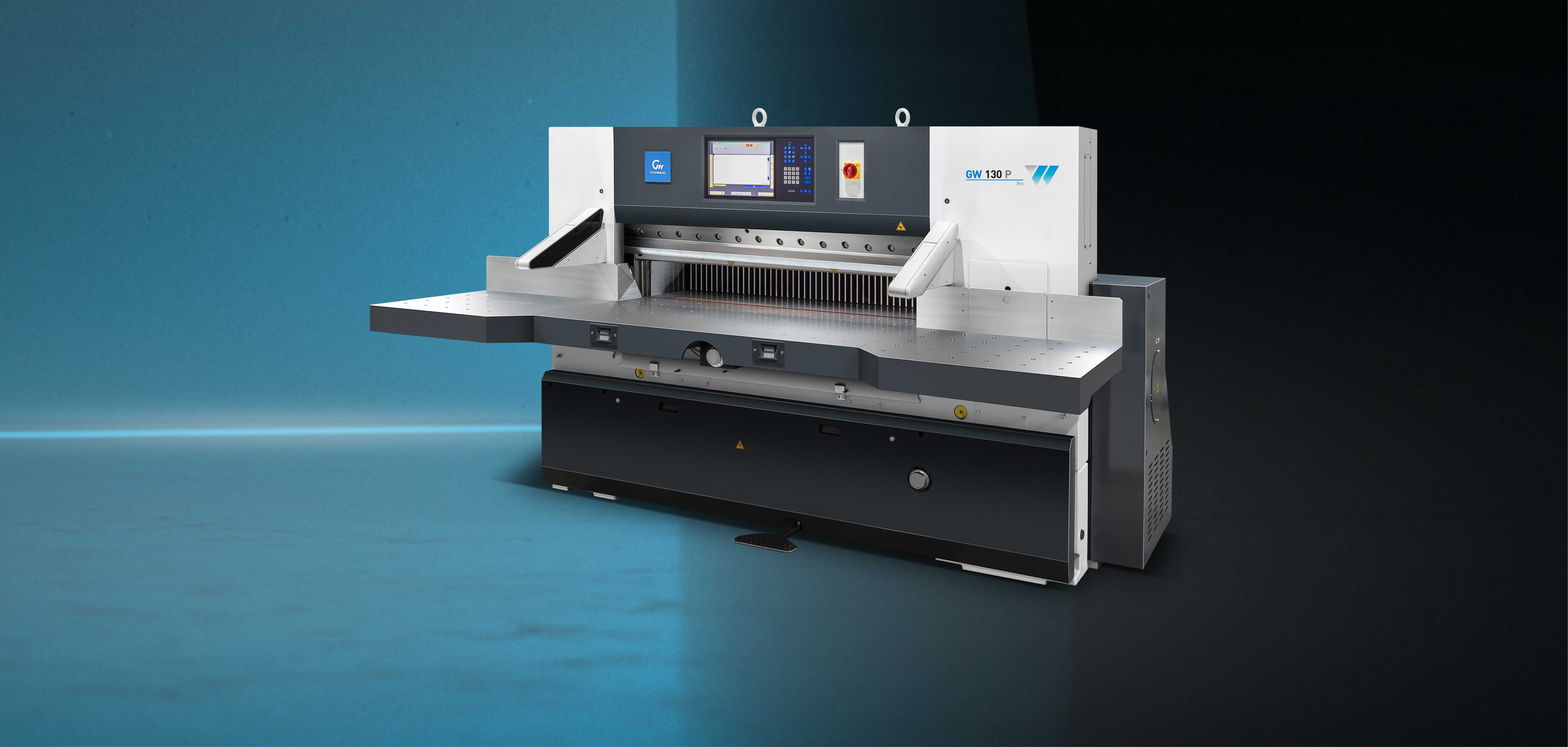

GW130P Paper Cutting Machine

GW130P

Product Comparison

Product Overview

Chrome-plated platform: chrome-plated working platform saves users' maintenance time and prolongs its service life.

Equipment safety: uniquely designed knife back insurance structure avoids damage to the machine caused by misoperation.

High-strength architecture: the whole machine adopts gantry structure, which is easy for users to install and adjust.

Reliable operating system: Embedded winCE operating system, not afraid of the impact of sudden power failure.

Humanized operation interface: the stamping part adopts 15-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching based on the special cognition of the equipment, the operation and control system with special features is developed, simple, intuitive and easy to operate.

Contact Us

Product Highlights

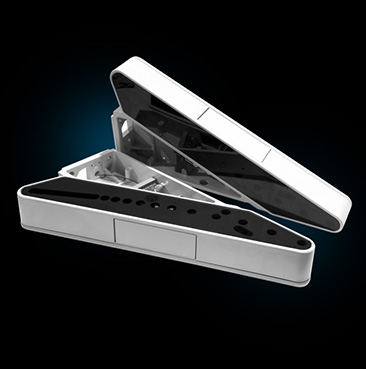

High-end security grating.

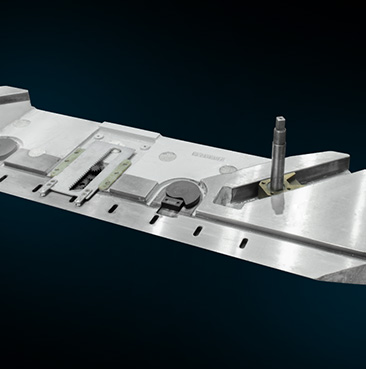

Mechanical hanging knife and top knife.

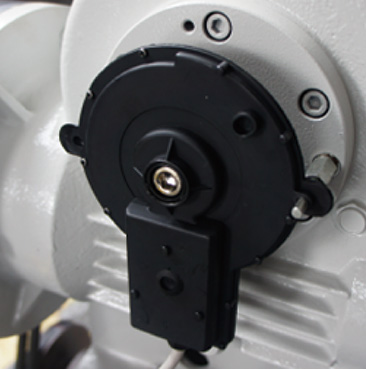

Electronic cams.

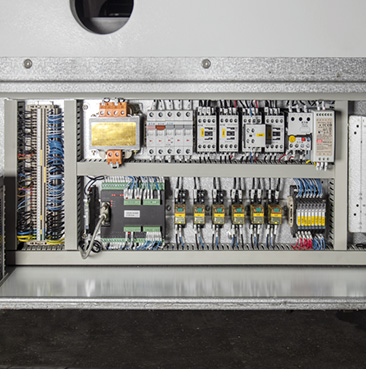

Electrical box.

Parameters

Machine Parameter:GW130P

Commencement

Model Number GW130P
Cutting Width 130/51.18 cm/inches
Cutting Height 13/5.12 cm/inches
Cutting Length 130/51.18 cm/inches
Mains Power 4 kw
Net Weight 3500/7700 kg/lbs
Machine Width 280/110.24 cm/inches (with side tables) 284.8/96.46 cm/inches (without side tables)
Machine Length 246/101.77 cm/inches
Machine Height 155/61.42 cm/inches
Length Of Front Table 73.5/28.94 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure
Maximum Platen Pressure
Blade Specification (L*W*H) 12.7*127*1520/0.5*5*59.84 mm
Maximum Sharpenable Area 3/1.18 cm/inches
Minimum Cutting 2.5/1 cm/inches (without lever) 9/3.54 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 275*140*191/108.27*55.12*75.20 cm
Supply Voltage
Wire Thickness 2.5 ㎡
Feeding Speed
Mounting Parameters:GW130P

Commencement

Machine Profile Length 2640 mm
Machine Profile Width 2850 mm
High Machine Profile 1622 mm
Machine Foundation Length 750 mm
Machine Foundation Width 750 mm
Machine Foundation Thickness 200 mm
Fuselage Half-Width 1012 mm
Net Weight 3.5 t
Package Size 2750*1500*2000 mm
