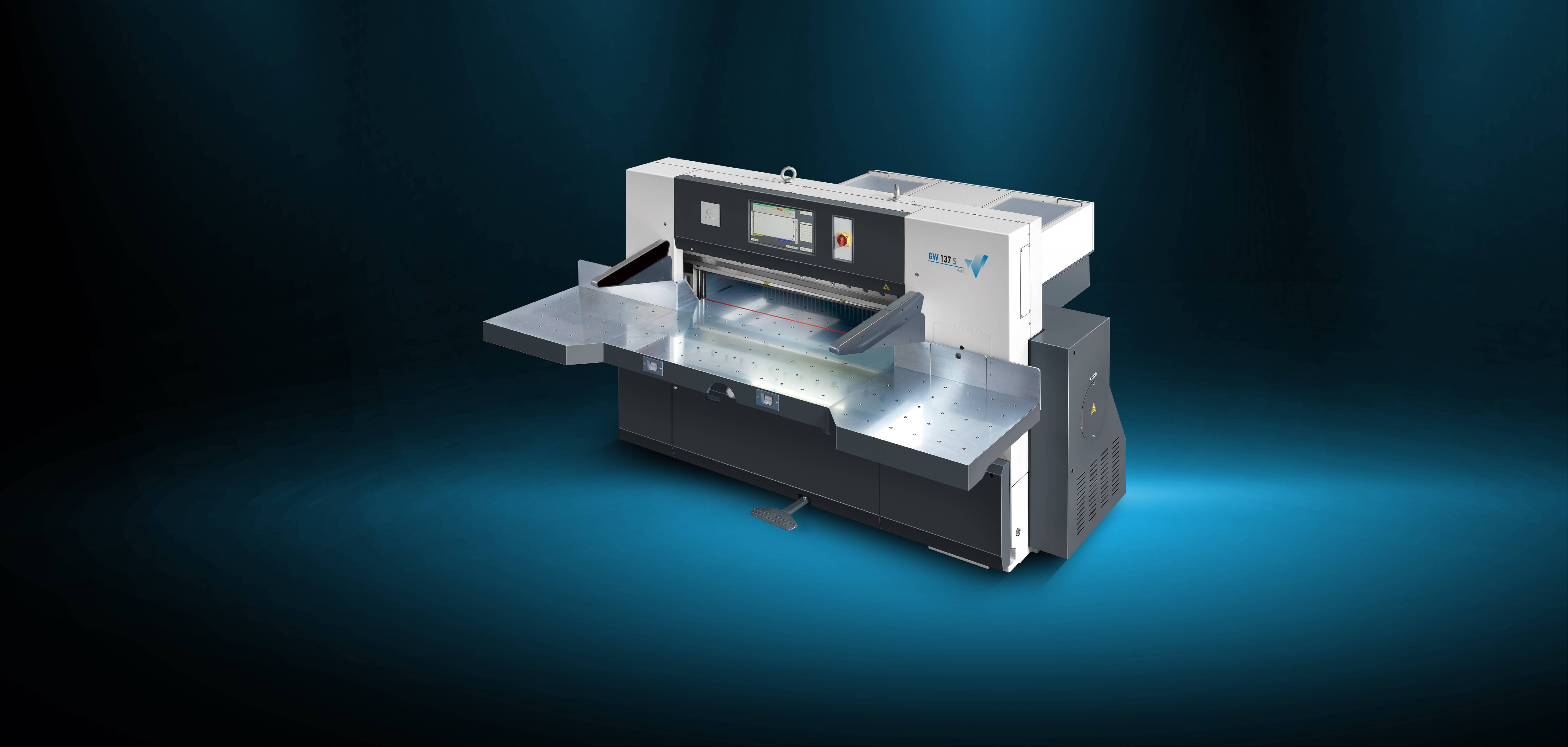

GW137S Single turbo high-speed paper cutter

GW137S

Product Comparison

Product Overview

Safety guarantee: Built-in knife back insurance structure and high reliable protection of hands cutting safety grating ensure the personal safety of the operator.

Automatic lubrication: The cutting part is equipped with automatic lubrication system as standard, which improves the working efficiency and prolongs the service life of the equipment.

Reliable electrical appliances: The main low-voltage control part of the whole machine adopts all imported electrical appliances, such as OMRON, Panasonic, Schneider and EATON.

Ergonomics: The operation screen of the computer adopts humanized design, which makes the operator easy to operate.

Humanized operation interface: the stamping part adopts 15-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching based on the special cognition of the equipment, the operation and control system with special features is developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

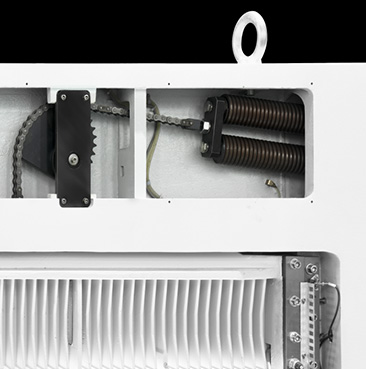

Double spring eccentric pull-up device.

Air silo type air storage structure.

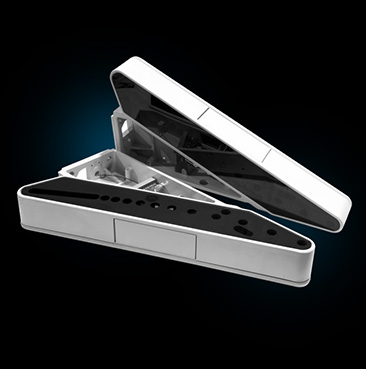

High-end security grating.

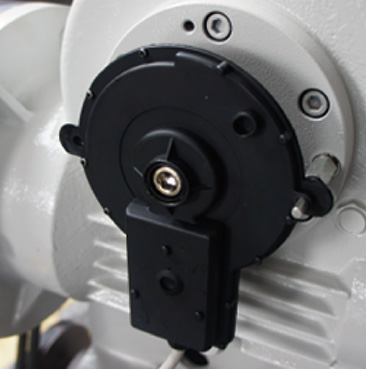

Electronic cams.

Parameters

Machine Parameter:GW137S

Commencement

Model Number GW137S
Cutting Width 137/53.94 cm/inches
Cutting Height 16.5/6.5 cm/inches
Cutting Length 145/57.09 cm/inches
Mains Power 4 kw
Net Weight 4500/9900 kg/lbs
Machine Width 287/112.99 cm/inches (with side table) 259.5/101.77 cm/inches (without side table)
Machine Length 280/109.65 cm/inches
Machine Height 165/65 cm/inches
Length Of Front Table 73.5/28.94 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 150/330 dan/lbs
Maximum Platen Pressure 4500/9900 dan/lbs
Blade Specification (L*W*H) 13.75*160*1605/0.54*6.3*63.19 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 2.5/1 cm/inches (without lever) 9.5/3.74 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 295*155*200/116.14*55.12*78.74 cm
Supply Voltage
Wire Thickness 2.5 ㎡
Feeding Speed
Mounting Parameters:GW137S

Commencement

Machine Profile Length 2823 mm
Machine Profile Width 2900 mm
High Machine Profile 1680 mm
Machine Foundation Length 750 mm
Machine Foundation Width 750 mm
Machine Foundation Thickness 200 mm
Fuselage Half-Width 1088 mm
Net Weight 3.9 t
Package Size 2950*1550*2000 mm
