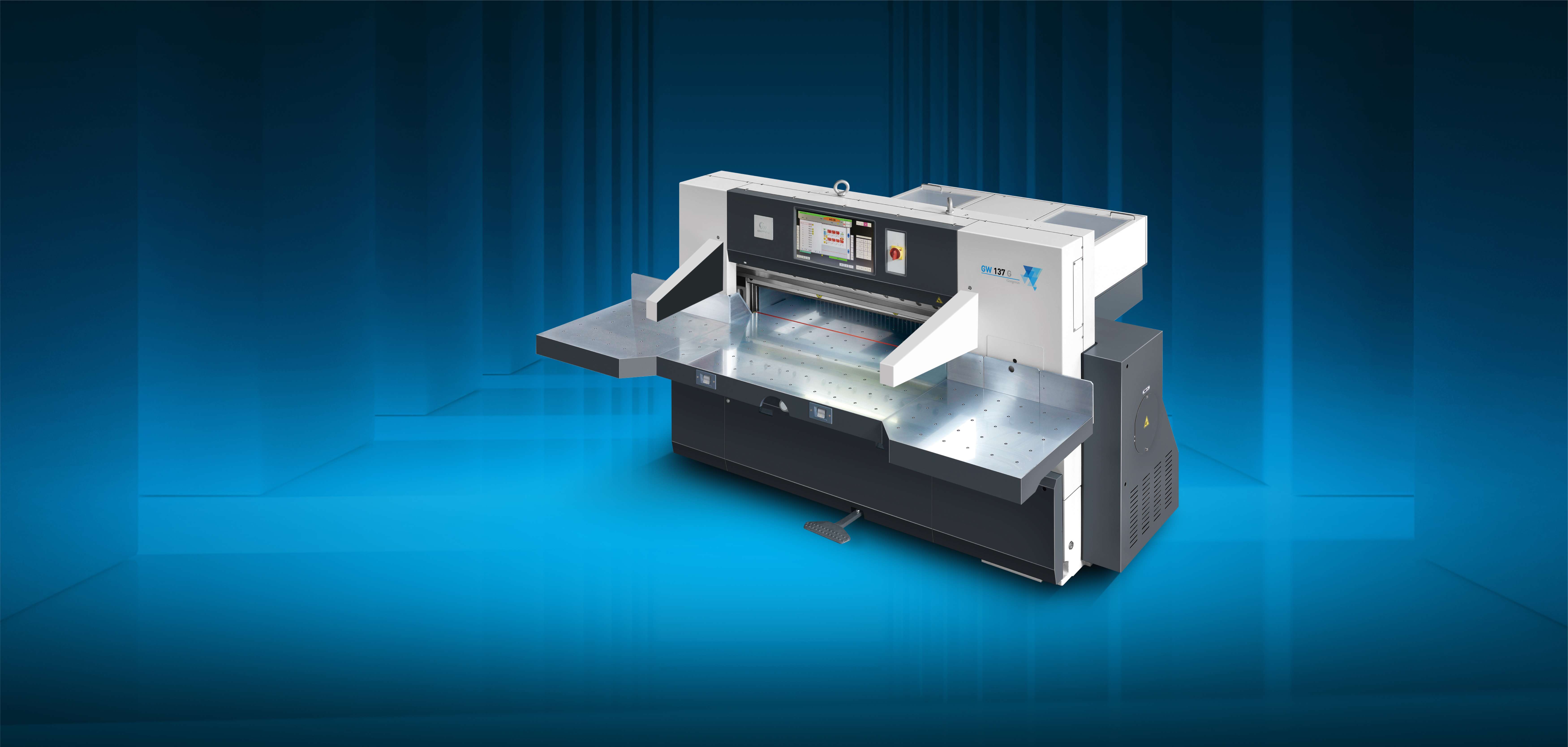

GW137G Single turbo high-speed paper cutter

GW137G

Product Comparison

Product Overview

Safety guarantee: Built-in knife back insurance structure and high reliable protection of hands cutting safety grating ensure the personal safety of the operator.

Automatic lubrication: the cutting part is equipped with automatic lubrication system as standard, which improves the working efficiency and prolongs the service life of the equipment.

Full-cycle life: all the big parts of the whole machine have been treated by aging and vibration, so it will not be deformed after long time use.

Ergonomics: The operation screen of the computer adopts humanized design, which makes the operator easy to operate.

Humanized operation interface: the stamping part adopts 21.5-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching based on the special cognition of the equipment, the operation and control system with special features is developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

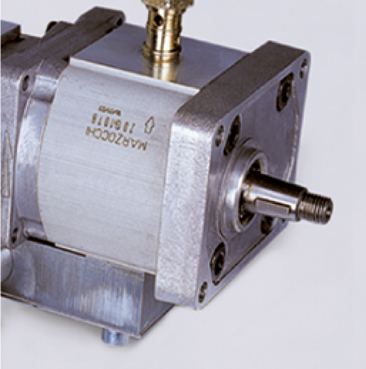

Italian hydraulic pumps.

Automatic body lubrication device.

Electronic cams.

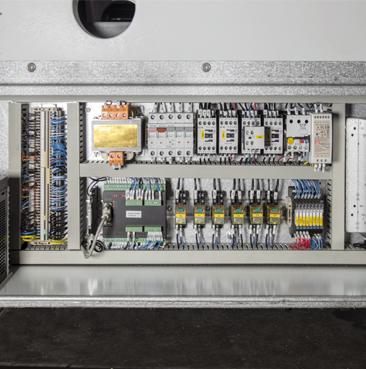

Electrical box.

Parameters

Machine Parameter:GW137G

Commencement

Model Number GW137G
Cutting Width 137/53.94 cm/inches
Cutting Height 16.5/6.5 cm/inches
Cutting Length 145/57.09 cm/inches
Mains Power 4 kw
Net Weight 4500/9900 kg/lbs
Machine Width 287/112.99 cm/inches (with side tables) 259.5/101.77 cm/inches (without side tables)
Machine Length 280/109.65 cm/inches
Machine Height 165/65 cm/inches
Length Of Front Table 73.5/28.94 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 150/330 dan/lbs
Maximum Platen Pressure 4500/9900 dan/lbs
Blade Specification (L*W*H) 13.75*160*1605/0.54*6.3*63.19 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 2.5/1 cm/inches (without lever) 9.5/3.74 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 295*155*200/116.14*55.12*78.74 cm
Supply Voltage 361-399 V
Wire Thickness 2.5 ㎡
Feeding Speed
Mounting Parameters:GW137G

Commencement

Machine Profile Length 2823 mm
Machine Profile Width 2900 mm
High Machine Profile 1680 mm
Machine Foundation Length 750 mm
Machine Foundation Width 750 mm
Machine Foundation Thickness 200 mm
Fuselage Half-Width 1088 mm
Net Weight 3.9 t
Package Size 2950*1550*2000 mm
