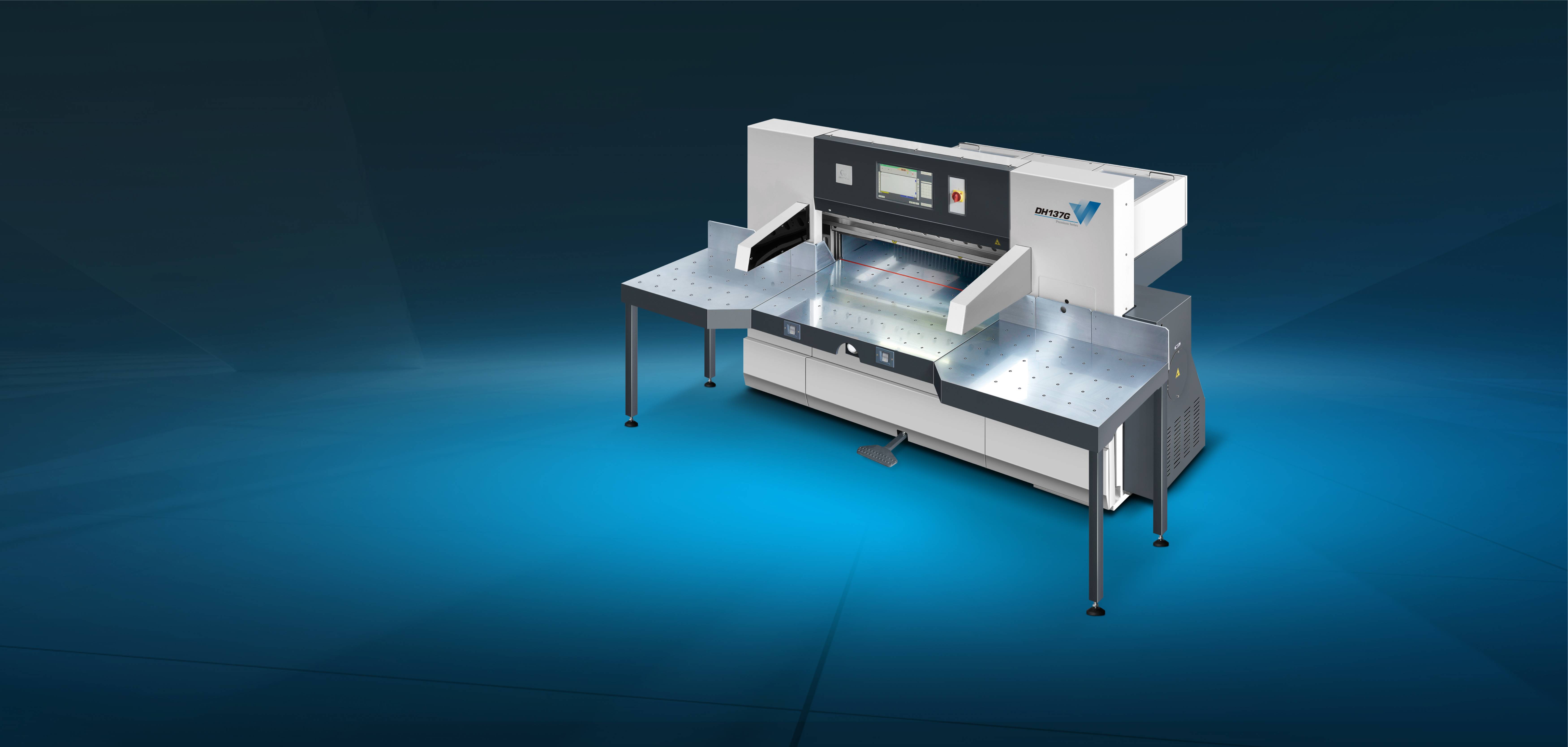

DH137G Twin turbine paper cutter

DH137G

Product Comparison

Product Overview

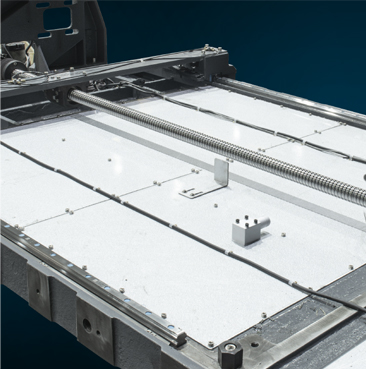

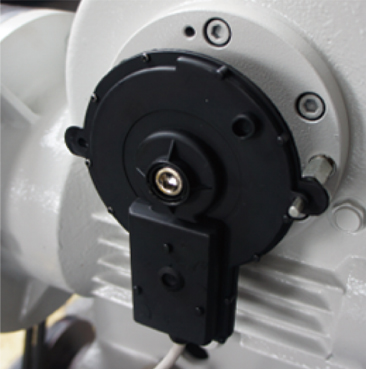

High-precision Positioning: The paper feeding motor adopts servo motor, which realizes high-precision and fast positioning.

True-color display: The display adopts 22-inch true-color LCD screen from Taiwan AUO company, which ensures its service life.

Stable paper feeding: Fast feeder running speed, up to 48m/min.

High-efficiency cutting: High-efficiency double worm gear transmission structure greatly improves the working efficiency, so that the number of cutting times up to 45 times / min.

Humanized operation interface: the stamping part adopts 21.5-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching Based on the special cognition of the equipment, it develops characteristic operation and control system, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

Double spring eccentric pull-up device.

Air silo type air storage structure.

High-end security grating.

Electronic cams.

Parameters

Machine Parameter:DH137G

Commencement

Model Number DH137G
Cutting Width 137/53.94 cm/inches
Cutting Height 21/8.27 cm/inches
Cutting Length 173/68.11 cm/inches
Mains Power 5.5 kw
Net Weight 4800/10560 kg/lbs
Machine Width 337/132.68 cm/inches (with side tables) 299.5/117.91 cm/inches (without side tables)
Machine Length 318.5/125.40 cm/inches
Machine Height 180/70.87 cm/inches
Length Of Front Table 75.5/29.72 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 200/440 dan/lbs
Maximum Platen Pressure 4500/9900 dan/lbs
Blade Specification (L*W*H) 13.75*160*1630/0.54*6.3*64.17 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 2.5/1 cm/inches (without lever) 9.5/3.74 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 360*160*210/141.73*62.99*82.68 cm
Supply Voltage 361-399 V
Wire Thickness 4 ㎡
Feeding Speed
Mounting Parameters:DH137G

Commencement

Machine Profile Length
Machine Profile Width
High Machine Profile
Machine Foundation Length
Machine Foundation Width
Machine Foundation Thickness
Fuselage Half-Width
Net Weight
Package Size
