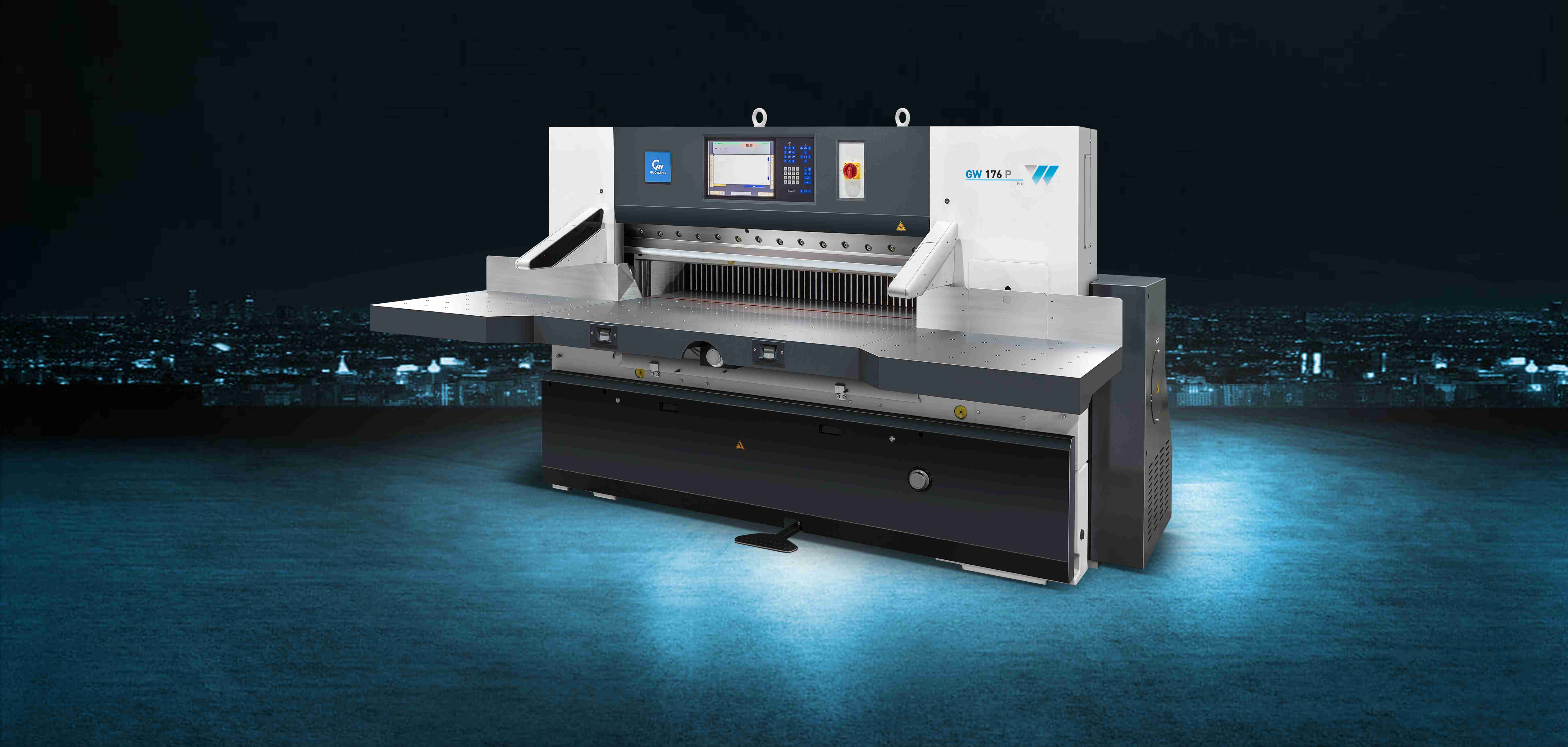

GW176P Single turbine paper cutter

GW176P

Product Comparison

Product Overview

Safety: Built-in knife back insurance structure and high reliable protection of hands cutting safety grating ensure the personal safety of the operator.

Equipment safety: Uniquely designed knife back insurance structure avoids damage to the machine caused by misoperation.

Stable paper feeding: fast feeder running speed, up to 24m/min.

Blowing platform: The working platform is also equipped with blowing structure, which is convenient for pushing and feeding paper.

Humanized operation interface: the stamping part adopts 15-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching Based on the special cognition of the equipment, it develops the operation and control system with special features, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

Double spring eccentric pull-up device.

Dual-channel, dual-circuit hydraulic system.

High-end security grating.

Mechanical hanging knife and top knife.

Parameters

Machine Parameter:GW176P

Commencement

Model Number GW176P
Cutting Width 176/69.29 cm/inches
Cutting Height 16.5/6.5 cm/inches
Cutting Length 200/78.74 cm/inches
Mains Power 7.5 kw
Net Weight 6800/14960 kg/lbs
Machine Width 376/148 cm/inches (with side table) 304/119.49 cm/inches (without side table)
Machine Length 360/141.85 cm/inches
Machine Height 173/68.11 cm/inches
Length Of Front Table 75/29.53 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 300/660 dan/lbs
Maximum Platen Pressure 7000/15430 dan/lbs
Blade Specification (L*W*H) 13.75*160*2000/0.54*6.3*78.74 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 12/4.72 cm/inches (without lever) 3.5/1.38 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 370*160*230/145.67*63*90.55 cm
Supply Voltage 361-399 V
Wire Thickness 4 ㎡
Feeding Speed
Mounting Parameters:GW176P

Commencement

Machine Profile Length
Machine Profile Width
High Machine Profile
Machine Foundation Length
Machine Foundation Width
Machine Foundation Thickness
Fuselage Half-Width
Net Weight
Package Size
