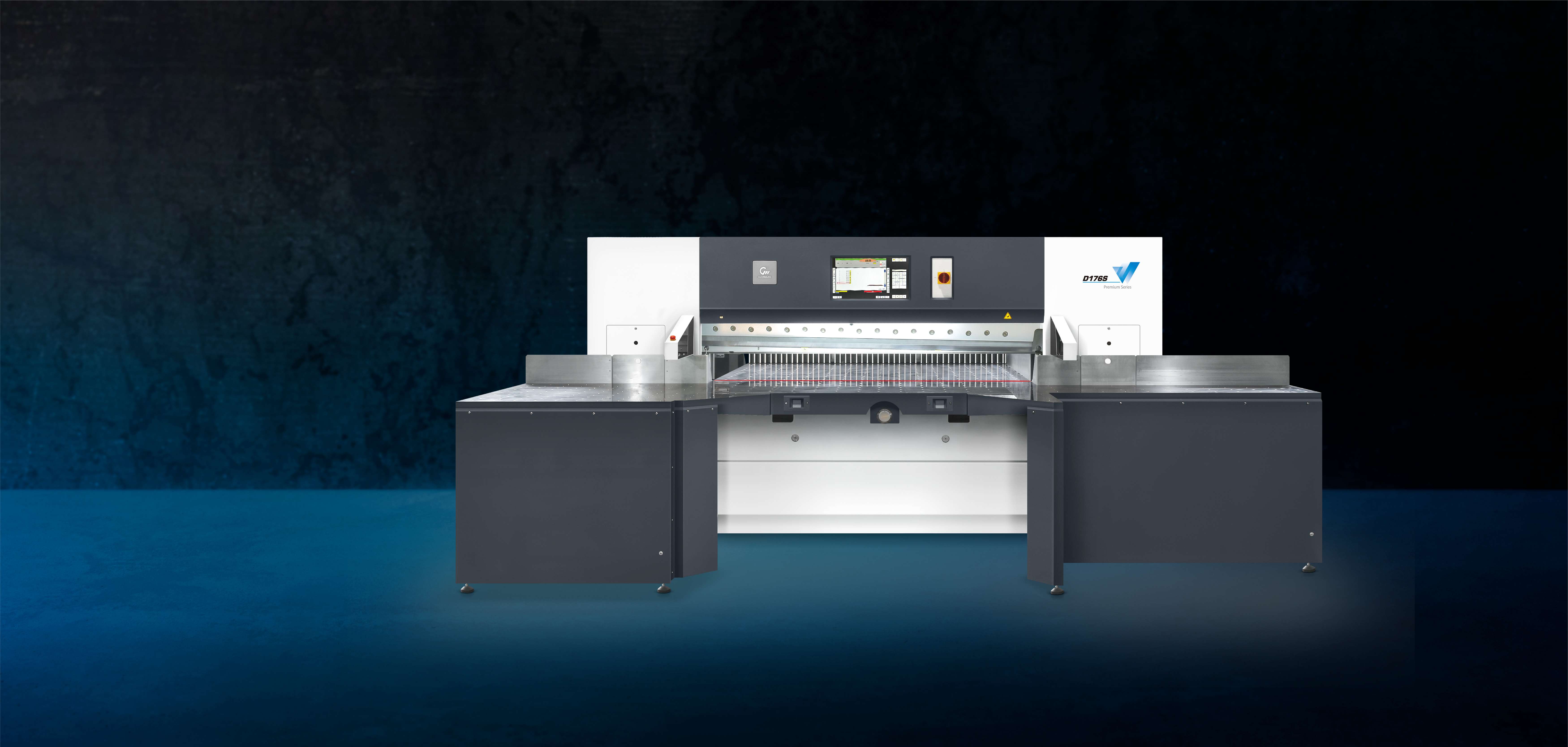

D176S Twin turbine paper cutter

D176S

Product Comparison

Product Overview

Full-cycle life: adopting the central drive structure of the presser, the pressure of the presser is balanced as a whole, which improves the qualified rate of the finished products and effectively prolongs the service life of the machine at the same time.

Automatic lubrication: The cutting part is equipped with automatic lubrication system as standard, which improves the working efficiency and prolongs the service life of the equipment.

Stable paper feeding: fast feeder running speed, up to 40m/min.

Reliable operating system: Embedded winCE operating system, not afraid of the impact of sudden power failure.

Humanized operation interface: stamping part adopts 19-inch HD touch screen, all settings as well as functions can be easily realized by touching based on the special knowledge of the equipment, the development of the operation and control system with characteristics, simple, intuitive and easy to operate.

Contact Us

Product Highlights

Double spring eccentric pull-up device.

Dual-channel, dual-circuit hydraulic system.

High-end security grating.

Mechanical hanging knife and top knife.

Parameters

Machine Parameter:D176S

Commencement

Model Number D176S
Cutting Width 176/69.29 cm/inches
Cutting Height 16.5/6.5 cm/inches
Cutting Length 200/78.74 cm/inches
Mains Power 7.5 kw
Net Weight 6200/13640 kg/lbs
Machine Width 376/148 cm/inches (with side table) 330/129.92 cm/inches (without side table)
Machine Length 387/152.36 cm/inches
Machine Height 173/68.11 cm/inches
Length Of Front Table 100/39.37 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 300/660 dan/lbs
Maximum Platen Pressure 7000/15430 dan/lbs
Blade Specification (L*W*H) 13.75*160*2000/0.54*6.3*78.74 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 12/4.72 cm/inches (without lever) 3.5/1.38 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 370*160*230/145.67*63*90.55 cm
Supply Voltage 361-399 V
Wire Thickness 4 ㎡
Feeding Speed
Mounting Parameters:D176S

Commencement

Machine Profile Length
Machine Profile Width
High Machine Profile
Machine Foundation Length
Machine Foundation Width
Machine Foundation Thickness
Fuselage Half-Width
Net Weight
Package Size
