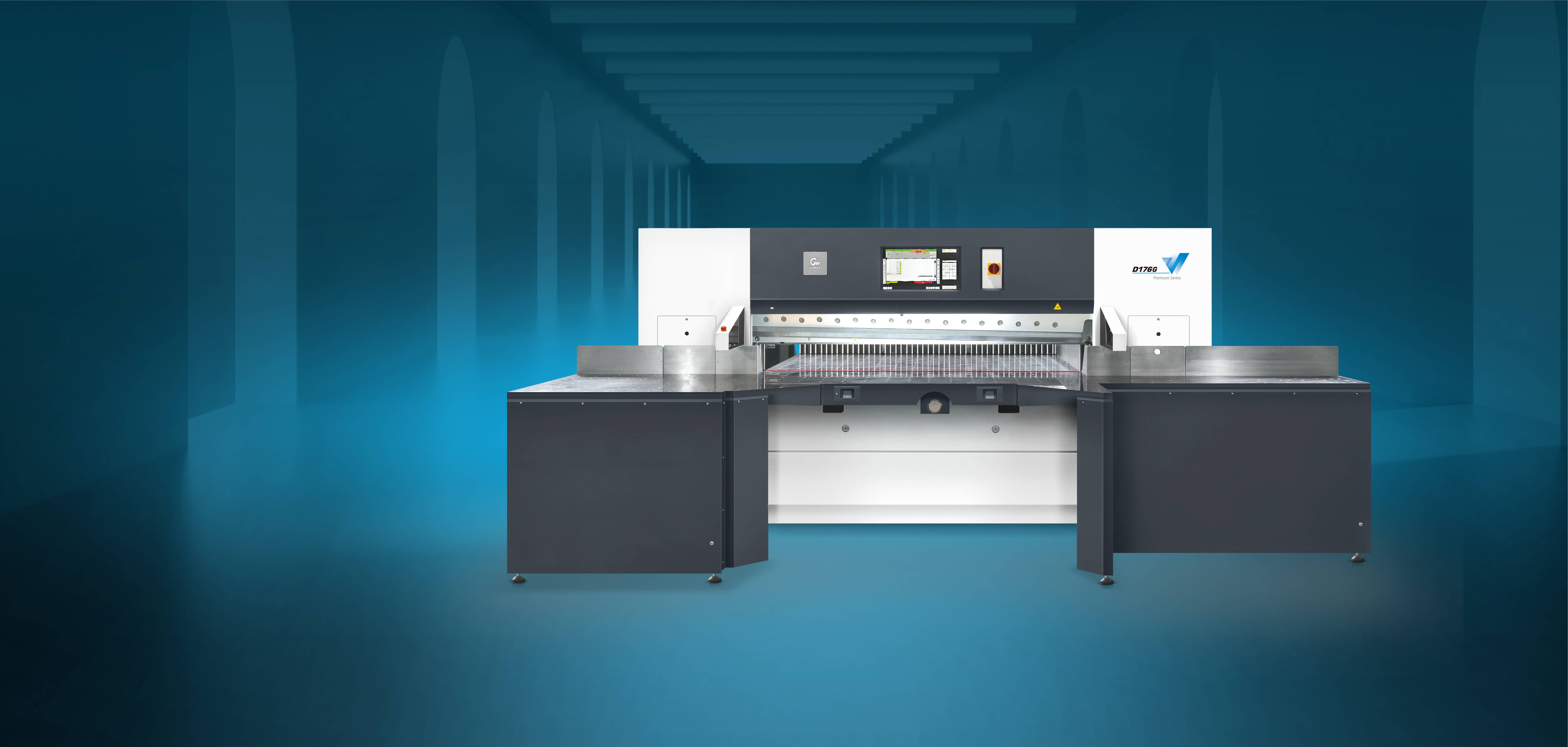

D176G Twin turbine paper cutter

D176G

Product Comparison

Product Overview

Independent intellectual property rights: the operating system is certified by the state and has independent intellectual property rights.

Equipment safety: the designed knife back insurance structure avoids damage to the machine caused by misoperation.

Data interface: open data interface, can access the user's MES or ERP system, convenient management.

Automatic pressure adjustment: according to the size of the paper, the pressure is automatically adjusted.

Humanized operation interface: the stamping part adopts 21.5-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching Based on the special cognition of the equipment, it develops characteristic operation and control system, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

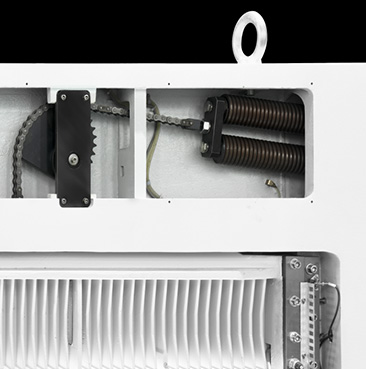

Double spring eccentric pull-up device.

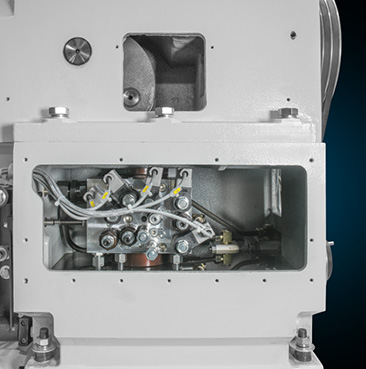

Dual-channel, dual-circuit hydraulic system.

High-end security grating.

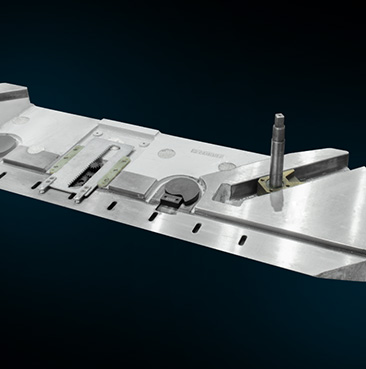

Mechanical hanging knife and top knife.

Parameters

Machine Parameter:D176G

Commencement

Model Number D176G
Cutting Width 176/69.29 cm/inches
Cutting Height 16.5/6.5 cm/inches
Cutting Length 200/78.74 cm/inches
Mains Power 7.5 kw
Net Weight 6200/13640 kg/lbs
Machine Width 376/148 cm/inches (with side table) 330/129.92 cm/inches (without side table)
Machine Length 387/152.36 cm/inches
Machine Height 173/68.11 cm/inches
Length Of Front Table 100/39.37 cm/inches
Desktop Height 90/35.43 cm/inches
Minimum Platen Pressure 300/660 dan/lbs
Maximum Platen Pressure 7000/15430 dan/lbs
Blade Specification (L*W*H) 13.75*160*2000/0.54*6.3*78.74 mm
Maximum Sharpenable Area 6/2.36 cm/inches
Minimum Cutting 12/4.72 cm/inches (without lever) 3.5/1.38 cm/inches (with lever)
Cutting Speed 45 times/min
Package Size (L*W*H) 370*160*230/145.67*63*90.55 cm
Supply Voltage 361-399 V
Wire Thickness 4 ㎡
Feeding Speed
Mounting Parameters:D176G

Commencement

Machine Profile Length
Machine Profile Width
High Machine Profile
Machine Foundation Length
Machine Foundation Width
Machine Foundation Thickness
Fuselage Half-Width
Net Weight
Package Size
