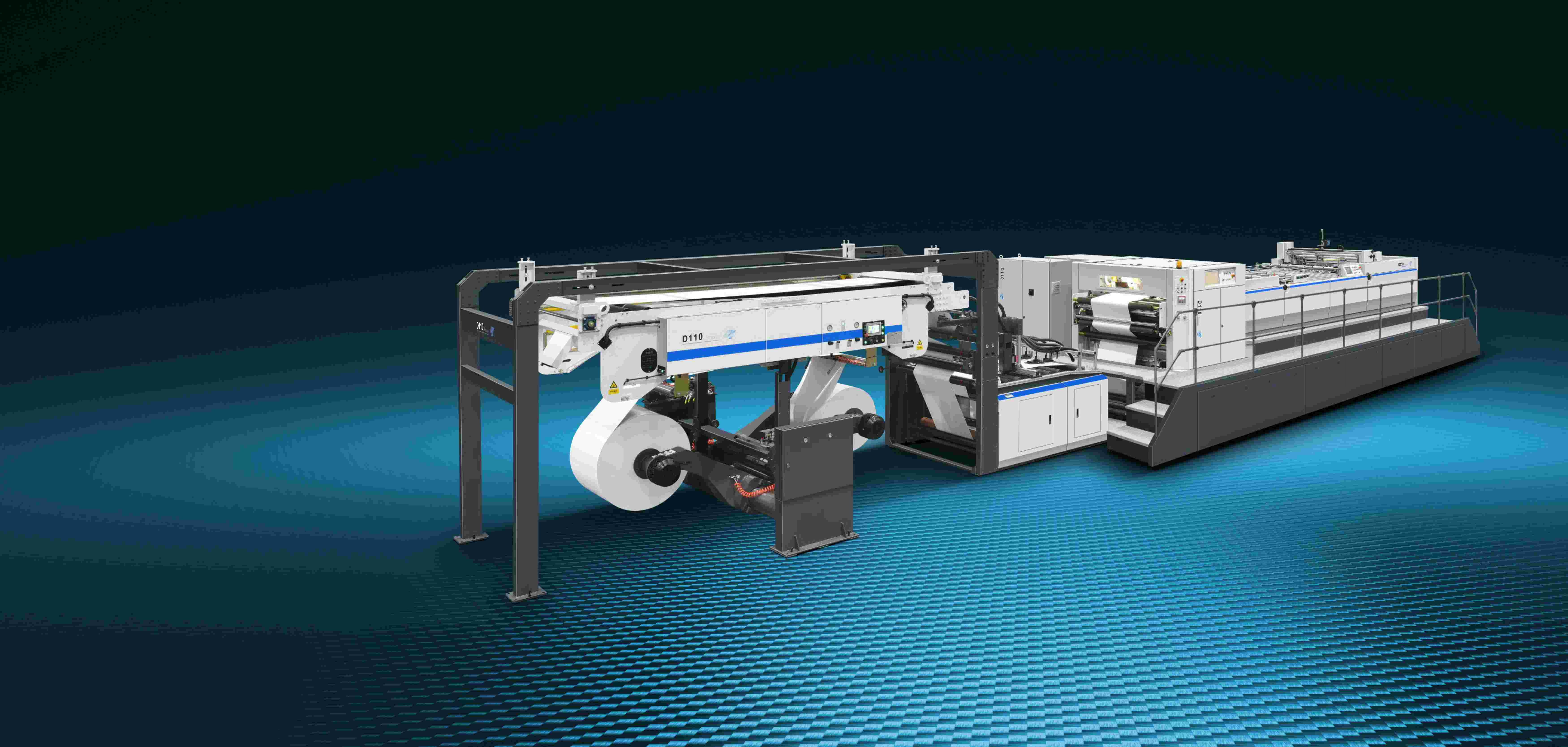

D110 Slitter

D110

Product Comparison

Product Overview

Independent intellectual property rights: the operating system is certified by the state and has independent intellectual property rights.

Equipment safety: the designed knife back insurance structure avoids damage to the machine caused by misoperation.

Data interface: open data interface, can access the user's MES or ERP system, convenient management.

Automatic pressure adjustment: according to the size of the paper, the pressure is automatically adjusted.

Humanized operation interface: the stamping part adopts 21.5-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching Based on the special cognition of the equipment, it develops characteristic operation and control system, which is simple, intuitive and easy to operate.

Contact Us

Parameters

Machine Parameter:D110

Commencement

Model Number D110
Stack Height 1700 mm with pallet
Main Motor Power 64 kw
Power Of The Whole Machine 98/105 kw
Total Weight 22000 kg
Air Requirements 6-8 bar
Paper Range 150-1000 gsm
Maximum Paper Size 1100 mm
Maximum Web Diameter 1800 mm
Cutting Length Range 400-1700 mm
Cutting Accuracy ±0.15 mm
Maximum Cutting Speed 300 m/min
Maximum Number Of Cutters 460 p/min
