Brand new veneers for unmatched durability

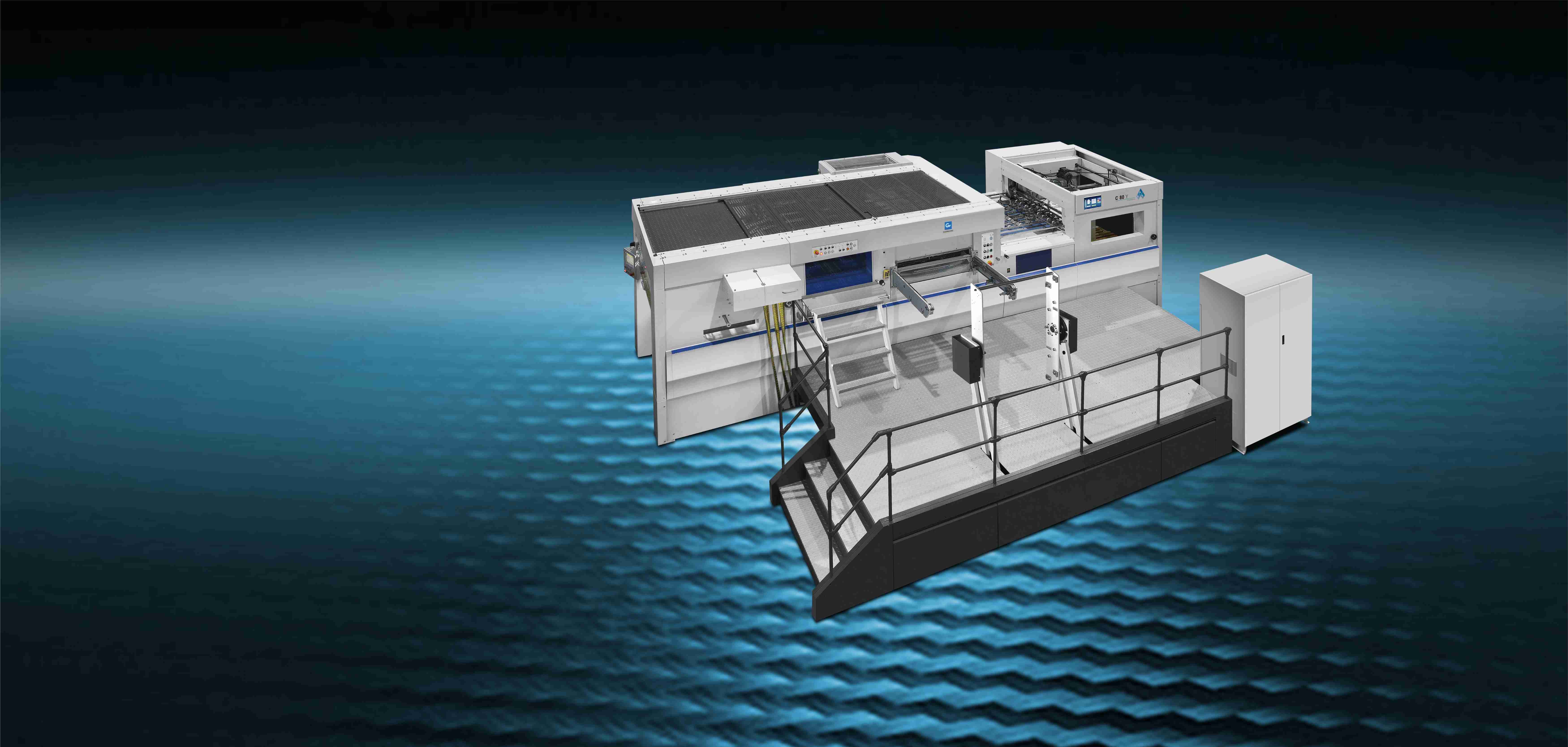

C80Y Stamping and die-cutting machine

C80Y

Product Comparison

Product Overview

Superior foil stamping and embossing: This foil stamping machine is designed to meet all the qualities you expect: excellent precision, exceptional productivity and outstanding product quality - everything you need to simply get brilliant results.

Outstanding versatility: the application of hot stamping, embossing and holograms allows stamping of a wide range of materials, including diffraction stamping with complex structural images.

Diversified product range: a single machine can fulfill your stamping and die-cutting needs and can help you build up your stamping work orders while being used daily as a die-cutting machine.

Time-saving ergonomics: fast changeover from stamping to die-cutting with virtually no downtime due to foil breakage Equipped with a dedicated system for efficient production data management.

User-friendly operation interface: the stamping part is equipped with a 19-inch high-definition touch screen, all settings as well as functions can be easily realized by touching Based on the special knowledge of the equipment, we have developed a characteristic operation and control system, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

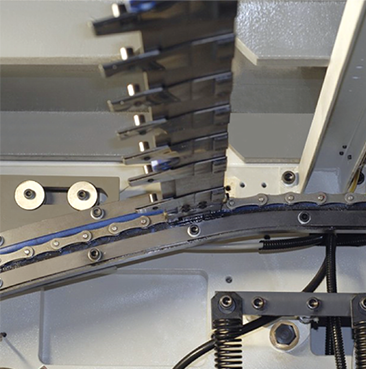

Original Japanese high quality dental tablets with unrivaled durability.

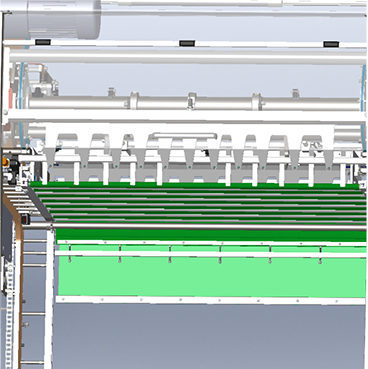

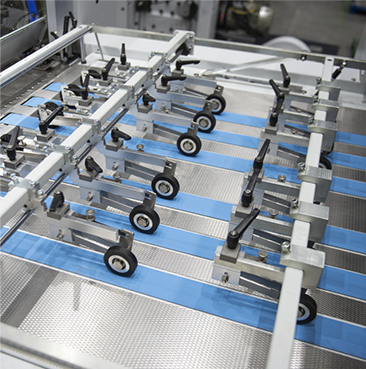

Conveyor belts and anti-static steel plates ensure ideal material transfer synchronization units provide high quality control of paper arrival at the front gauge and reduce downtime.

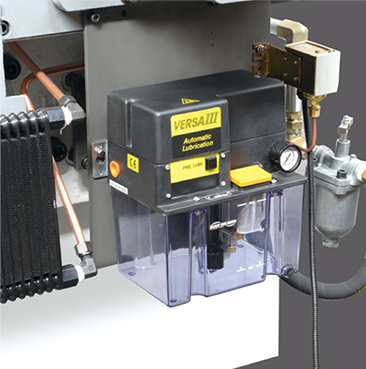

The automatic lubrication system allows you to adjust the refueling intervals and the amount of refueling in the system via a touch screen.

Easier operation can effectively avoid the waste of downtime caused by human error.

Parameters

Machine Parameter:C80Y

Commencement

Model Number C80Y
Maximum Die-cutting Width 785*585mm
Maximum Stamping Area 760*580mm
Bite Blank Range 9-17mm
Maximum Die Cutting Pressure 150 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 7500 sheets/hour
Maximum Stamping Speed 6500 sheets/hour
Maximum Holographic And Laser Stamping Speeds 5500 sheets/hour
Heating Area 12 heating zones with temperatures from 20° to 180
Height Of Infeed Stack 1300mm
Stack Height 1050mm
Main Motor Power 7.5kw
Power Of The Whole Machine 35kw
Total Weight 14 tons
Exterior Dimensions 5510*3760*2350mm
Maximum Gold Foil Size In Longitudinal Direction Φ250mm
Air Requirements 6-8bar;550L/min
Maximum Holographic Stamping Speed
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy
Maximum Horizontal Gold Foil Size
Mounting Parameters:C80Y

Commencement

Total Length Of Machine Profile 5510 mm
Total Width Of Machine Profile 3760 mm
Total Height Of Machine Profile 2350 mm
Feeder Unit Length 2170 mm
Die Cutting Unit Length 1256 mm
Stamping/Scrapping Unit Length 915
Take-up Unit Length 1140 mm
Unit Width 2050 mm
Footrest Width 1700 mm
Paper Delivery Aisle Space 2500 mm
Aisle Width Behind Machine 1200 mm
Exit Doorway Space 2000 mm
Net Weight 14 t
Package Size Long 5700 mm
Package Size Width 2080 mm
Package Size Height 2300 mm

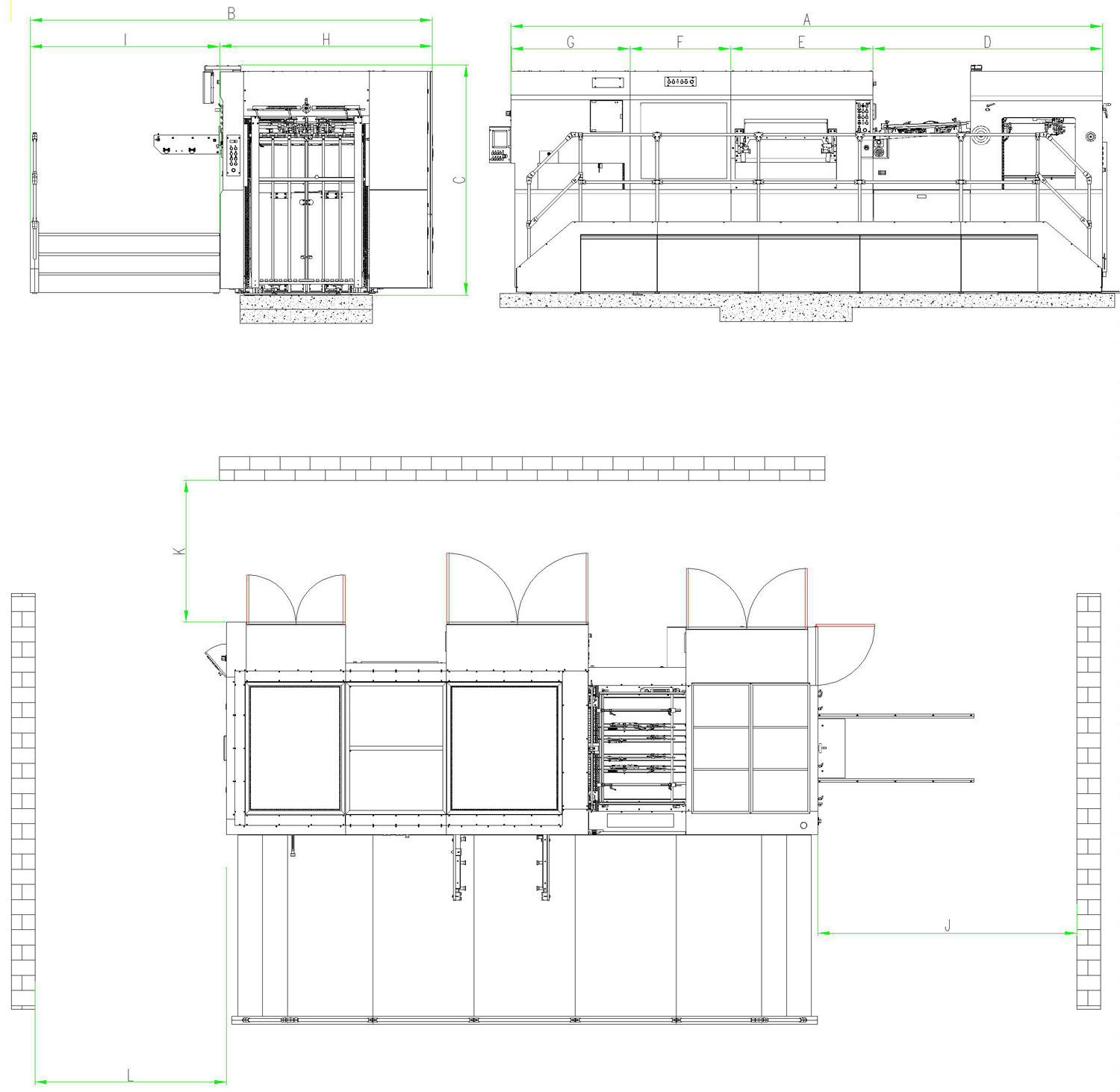

Installation Diagram
