Commencement

Model Number	SR920YY
Maximum Die-cutting Width	910*630mm
Maximum Stamping Area	900*600mm
Bite Blank Range	9-17mm
Maximum Die Cutting Pressure	300 tons
Paper Specifications	White cardboard: 90～2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed	7000 sheets/hour
Maximum Stamping Speed	5000 sheets/hour
Maximum Holographic And Laser Stamping Speeds
Heating Area	20 heating zones with temperatures from 30° to 200°.
Height Of Infeed Stack	1600mm
Stack Height	1400mm
Main Motor Power	18.5kw
Power Of The Whole Machine	90kW
Total Weight	34 tons
Exterior Dimensions	743054002600mm
Maximum Gold Foil Size In Longitudinal Direction	Φ250mm
Air Requirements	6-8Bar；600L/min
Maximum Holographic Stamping Speed	5000 sheets/hour
Die-cutting And Normal Stamping Accuracy	±0.075mm
Holographic Positioning Ironing Accuracy	±0.20mm
Die Cutting Accuracy
Maximum Horizontal Gold Foil Size

Commencement

Total Length Of Machine Profile
Total Width Of Machine Profile
Total Height Of Machine Profile
Feeder Unit Length
Die Cutting Unit Length
Stamping/Scrapping Unit Length
Take-up Unit Length
Unit Width
Footrest Width
Paper Delivery Aisle Space
Aisle Width Behind Machine
Exit Doorway Space
Net Weight
Package Size Long
Package Size Width
Package Size Height

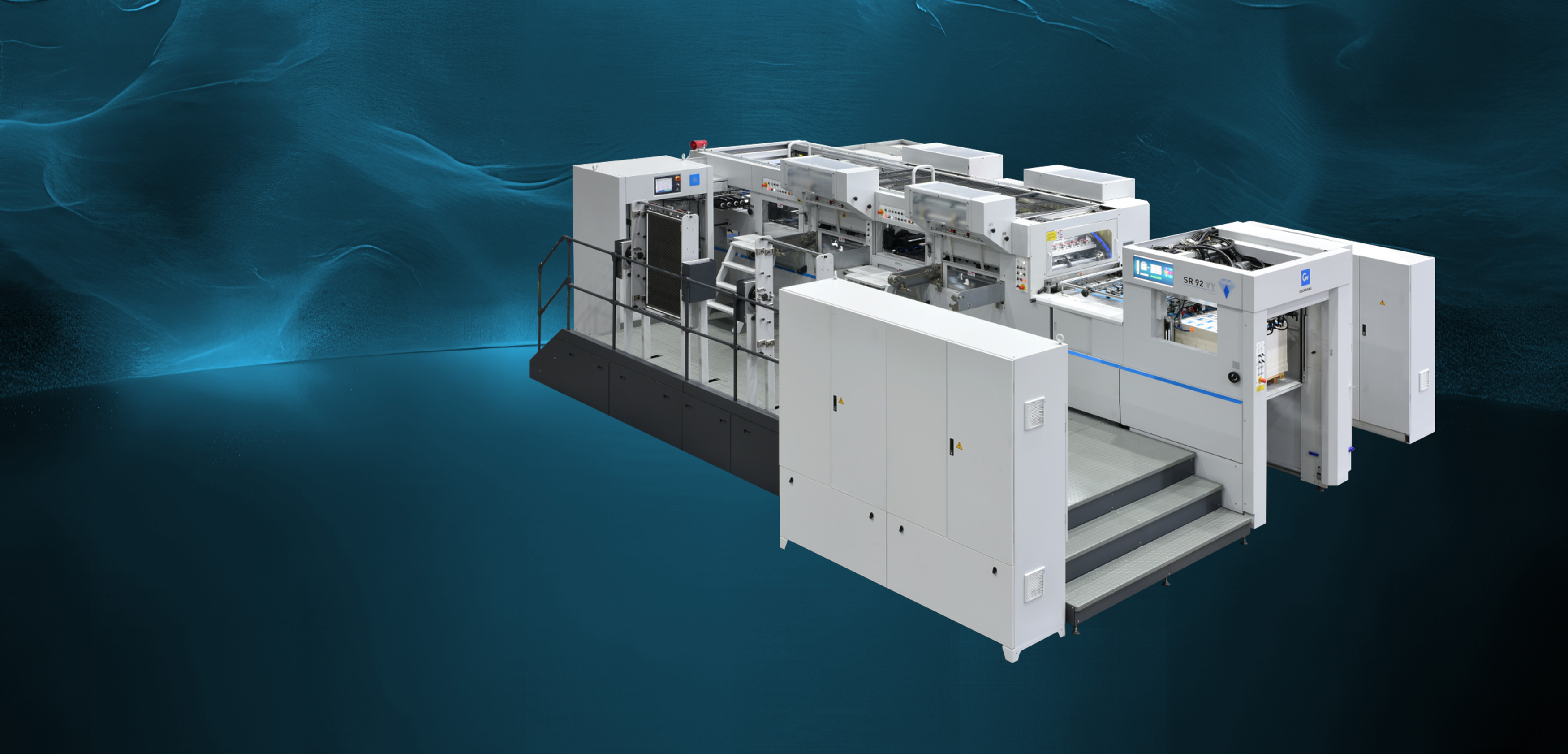

SR920YY Double sets of automatic hot stamping and die-cutting machine
