QT-2 Intelligent Paper Picker

QT-2

Product Comparison

Product Overview

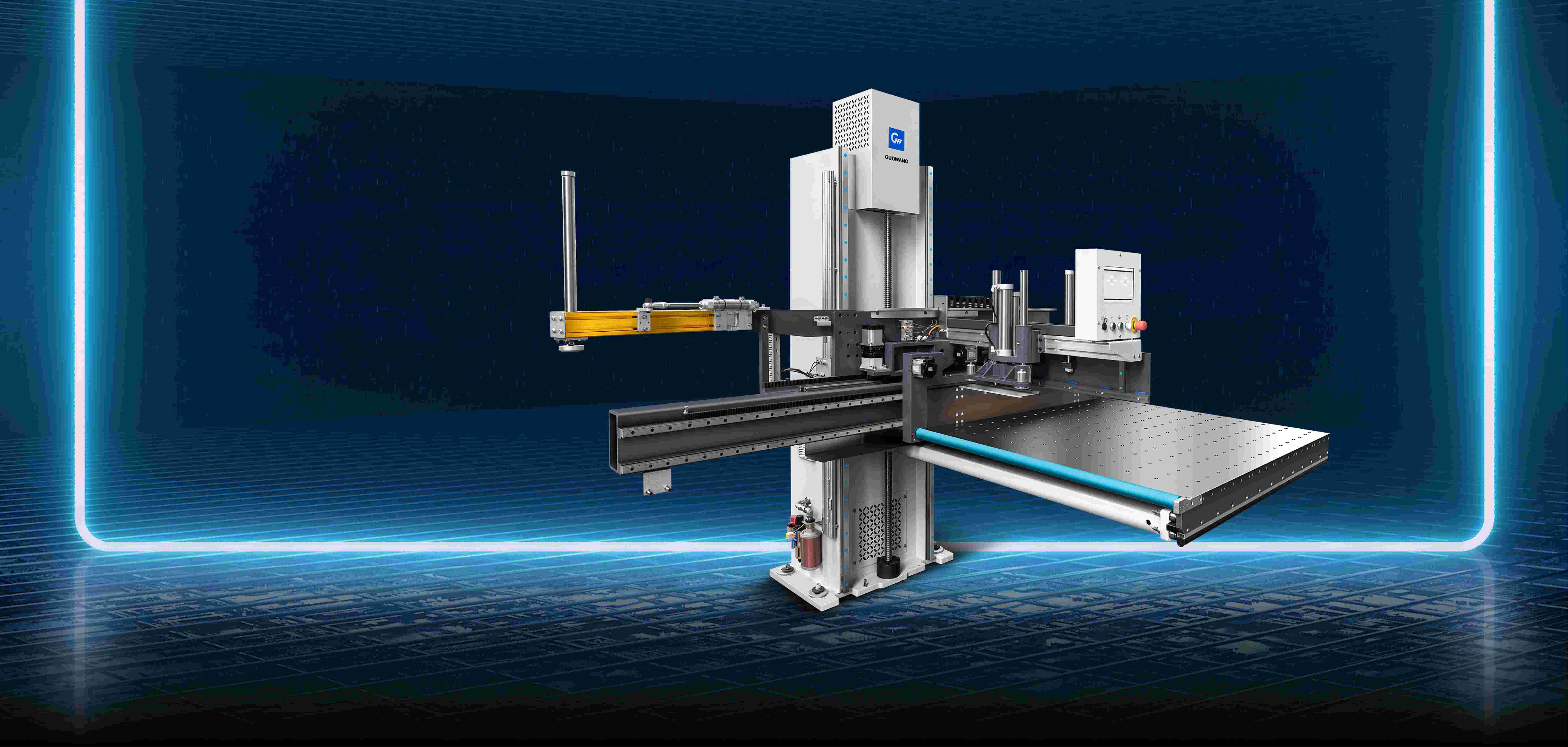

Intelligent paper picker (QT-2)

The machine is equipped with automatic paper stack pickup and up function, which can quickly and automatically transfer the paper in the stack to the working platform.

Infrared position detection device, accurate detection of the position of the paper to ensure that the paper stacked neatly, anti-impact flexible bumper, in the movement of the machine to effectively prevent accidental impact.

Pneumatic manipulator safety clamping device, to realize flexible paper clamping, to protect the corners of the paper from external force curling deformation.

Contact Us

Parameters

Machine Parameter:QT-2

Commencement

Model Number QT-2
Minimum Format (Y) 400 mm
Minimum Format (X) 600 mm
Maximum Format (Y) 960,920 mm
Maximum Format (X) 1350 mm
Minimum Height Per Order 55 mm
Maximum Per-ring Height 165 mm
Maximum Stacking Height 1600 mm
Dead Weight 300 kg
Unloading Time 40-55 S
Noise Level 75 dB
Maximum Inner Platform Size (Y)
Maximum Size Of Inner Platform (X)
Maximum Stroke (Stack Height)
Maximum Loading Capacity
Noise Level (EN13023)
Package Size
Size Of Table Plate (A)
Table Plate Size (B)
Unwind Height
Table Height
Mounting Parameters:QT-2

Commencement

Machine Width 3300 mm
Machine Depth 1910 mm
Machine Height 2412 mm
Net Weight 1600 kg
Compressed Air 5-8 bar
Gas Consumption 4 L/Min
Power Consumption (Max) 4 KW
Maximum Fuse Current 10 A
Supply Voltage 380±5%V/50HZ
Package Size 2700x2050x2487 mm
Height At Maximum Stroke
