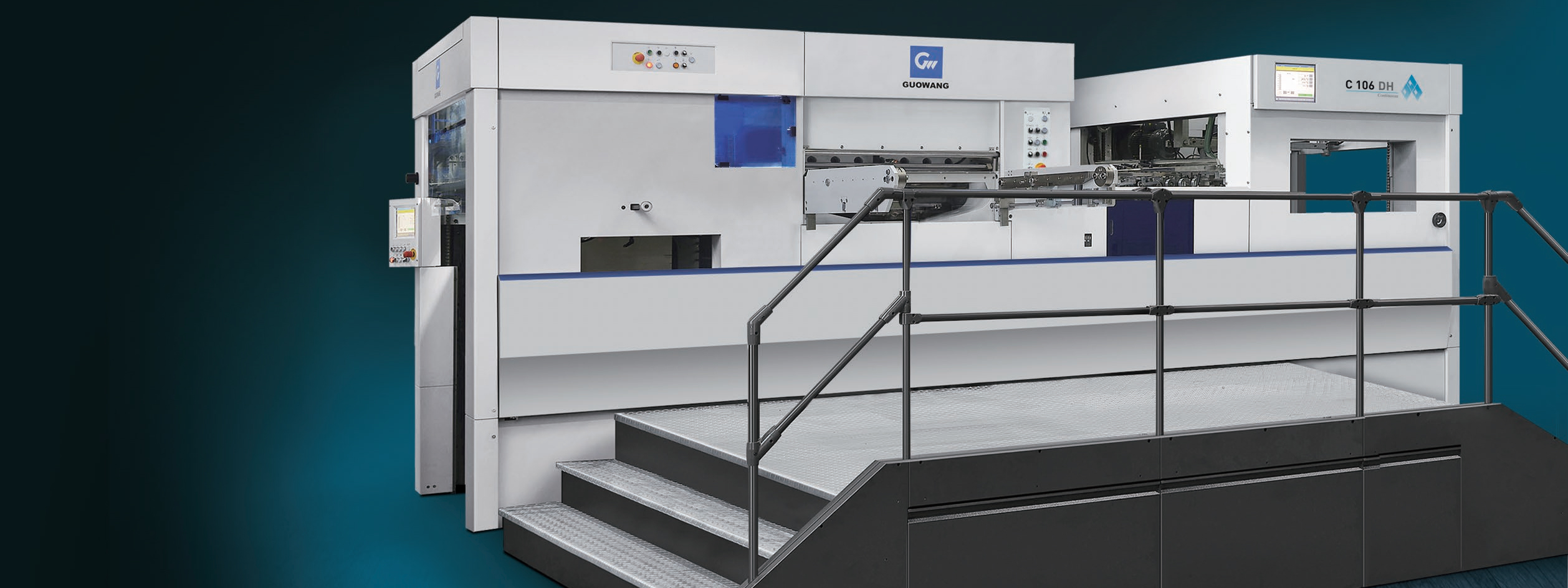

C106DHQ
Product Comparison
Parameters
Commencement
| Model Number | C106DHQ |
| Maximum Die-cutting Width | 1045*745mm |
| Bite Blank Range | 7-17mm |
| Maximum Die Cutting Pressure | 550 tons |
| Paper Specifications | White cardboard: 90-2000g/m² Corrugated cardboard: ≤4mm Cardboard: 0.1-3mm |
| Maximum Die Cutting Speed | 6000 sheets/hour |
| Heating Area | 20 temperature zones, heating temperature 30-200°C |
| Height Of Infeed Stack | 1600mm (including tray) |
| Stack Height | 1350mm (with tray) |
| Main Motor Power | 15kw |
| Power Of The Whole Machine | 35kw |
| Total Weight | 22 tons |
| Exterior Dimensions | 6-8Bar；200L/min |
| Air Requirements | 5197*4250*2430mm |
| Die Cutting Accuracy | ≤±0.075mm |
Commencement
| Total Length Of Machine Profile | 6264 mm |
| Total Width Of Machine Profile | 4250 mm |
| Total Height Of Machine Profile | 2430 mm |
| Feeder Unit Length | 2425 mm |
| Die Cutting Unit Length | 1500 mm |
| Stamping/Scrapping Unit Length | 1067 mm |
| Take-up Unit Length | 1270 mm |
| Unit Width | 2250 mm |
| Footrest Width | 2000 mm |
| Paper Delivery Aisle Space | 3000 mm |
| Aisle Width Behind Machine | 1500 mm |
| Exit Doorway Space | 2500 mm |
| Net Weight | 19 t |
| Package Size Long | 6500 mm |
| Package Size Width | 2300 mm |
| Package Size Height | 2530 mm |
