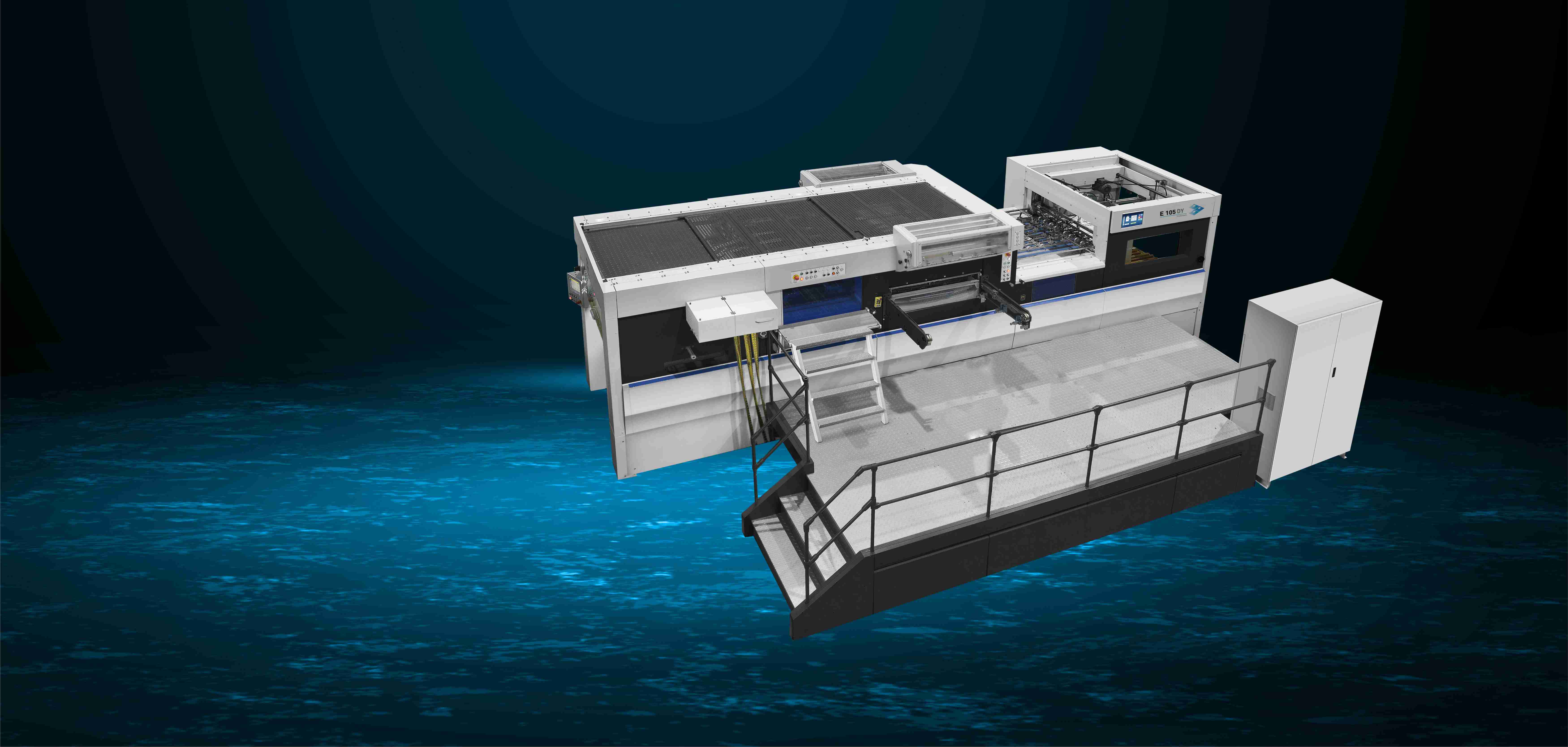

E105DY
Product Comparison
Parameters
Commencement
| Model Number | E105DY |
| Maximum Die-cutting Width | 1045*745mm |
| Maximum Stamping Area | 1045*740mm |
| Bite Blank Range | 9-17mm |
| Maximum Die Cutting Pressure | 500-550 tons |
| Paper Specifications | White cardboard: 90～2000g/m² Corrugated board: ≤4mm |
| Maximum Die Cutting Speed | 6000 sheets/hour |
| Maximum Stamping Speed | 6000 sheets/hour |
| Maximum Holographic And Laser Stamping Speeds | 5500 sheets/hour |
| Heating Area | 20 heating zones with temperatures 20°-180 |
| Height Of Infeed Stack | 1600mm |
| Stack Height | 1350mm |
| Main Motor Power | 11kw |
| Power Of The Whole Machine | 46kw |
| Total Weight | 22 tons |
| Exterior Dimensions | 6264*4350*2580mm |
| Maximum Gold Foil Size In Longitudinal Direction | Φ250mm |
| Air Requirements | 6-8Bar；600L/min |
| Maximum Holographic Stamping Speed | |
| Die-cutting And Normal Stamping Accuracy | |
| Holographic Positioning Ironing Accuracy | |
| Die Cutting Accuracy | ±0.075mm |
| Maximum Horizontal Gold Foil Size |
Commencement
| Total Length Of Machine Profile | |
| Total Width Of Machine Profile | |
| Total Height Of Machine Profile | |
| Feeder Unit Length | |
| Die Cutting Unit Length | |
| Stamping/Scrapping Unit Length | |
| Take-up Unit Length | |
| Unit Width | |
| Footrest Width | |
| Paper Delivery Aisle Space | |
| Aisle Width Behind Machine | |
| Exit Doorway Space | |
| Net Weight | |
| Package Size Long | |
| Package Size Width | |
| Package Size Height |
