Brand new veneers for unmatched durability

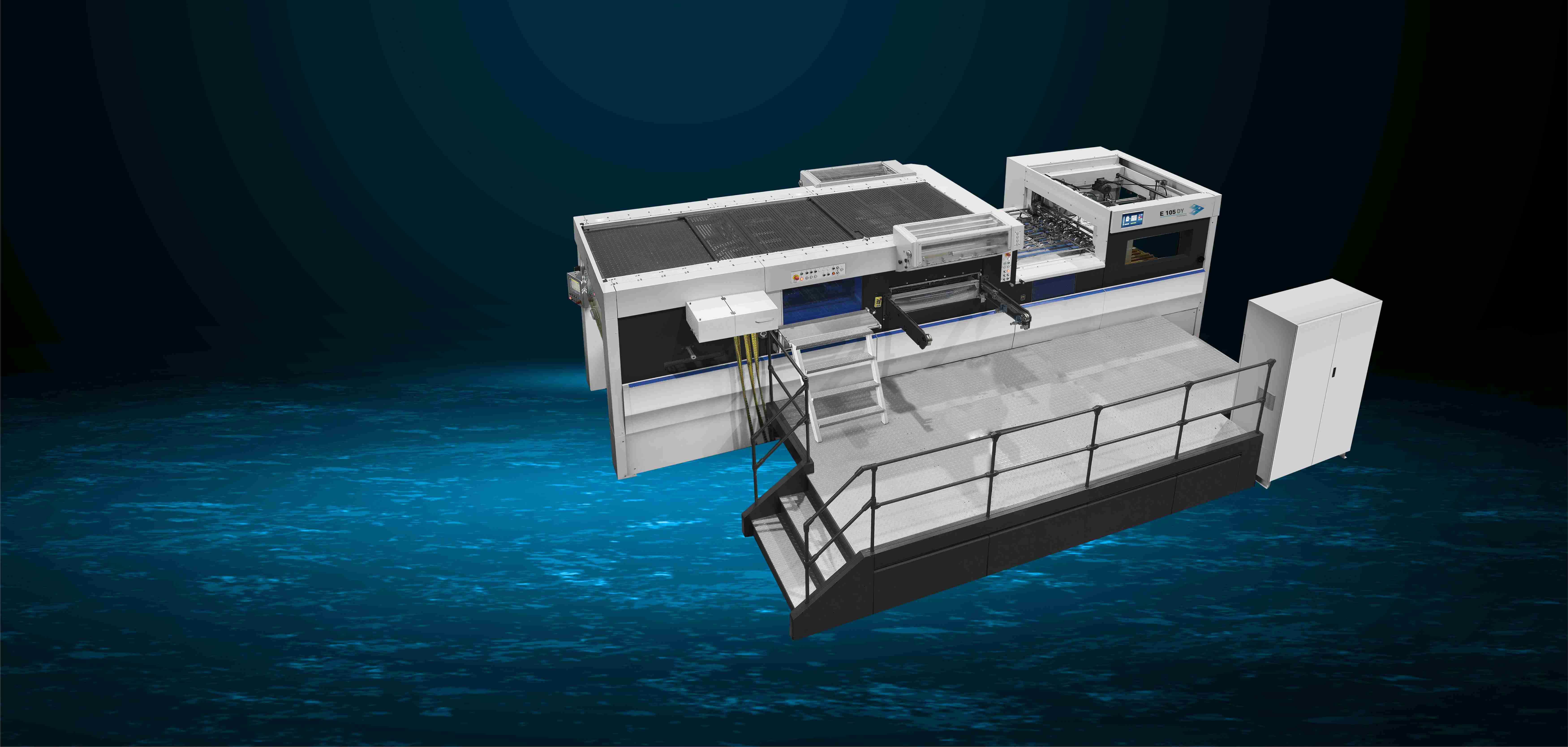

E105Y Stamping automatic die-cutting machine

E105Y

Product Comparison

Product Overview

All-weather production: virtually no downtime due to foil breakage No ergonomic adjustments are required during production, reducing setup time.

Economical: The application of foil stamping, embossing and holographic patterns allows stamping of a wide range of materials, including diffraction stamping with complex structural images.

Individually controlled temperature zones: The machine features 20 independently controlled temperature zones that can be individually heated and temperature controlled to realize energy savings.

Time-saving ergonomics: fast changeover from stamping to die-cutting with little downtime due to foil breakage Equipped with a dedicated system for efficient production data management.

User-friendly operation interface: 19-inch high-definition touch screen is used in the stamping part, all settings as well as functions can be easily realized by touching Based on the special knowledge of the equipment, the operation and control system with special features is developed, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

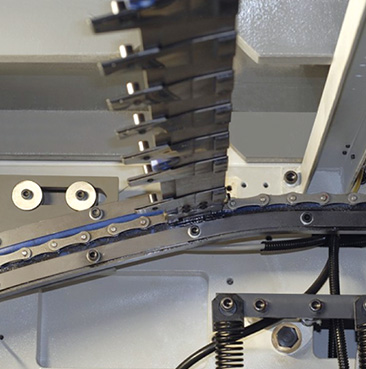

Original Japanese high quality dental tablets with unrivaled durability.

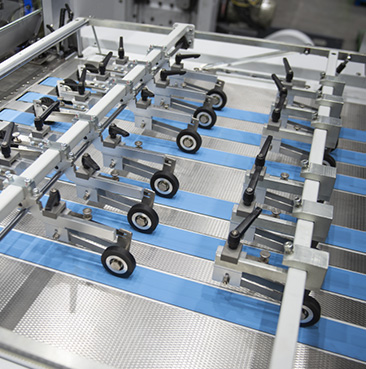

Conveyor belts and anti-static steel plates ensure ideal material transfer synchronization units provide high quality control of paper arrival at the front gauge and reduce downtime.

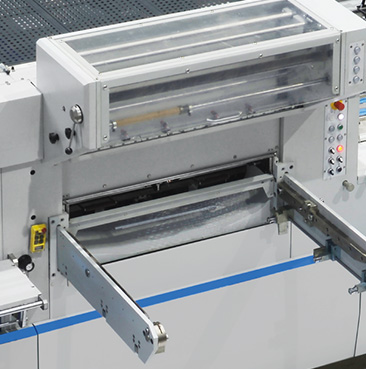

Horizontal hot stamping up to two horizontal hot stamping (optional).

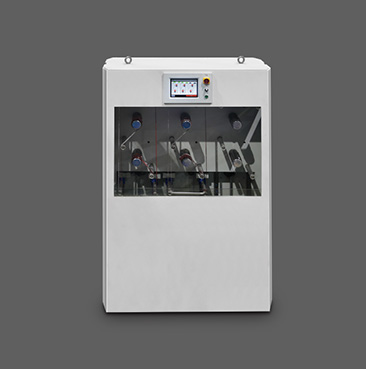

Automatic Foil Rewinder WFR-280 is equipped with an automatic 6-axis servo foil rewinding machine with 10.4” LED touch screen (optional).

Parameters

Machine Parameter:E105Y

Commencement

Model Number E105Y
Maximum Die-cutting Width 1045*745mm
Maximum Stamping Area 1045*745mm
Bite Blank Range 7-17mm
Maximum Die Cutting Pressure 320 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 7500 sheets/hour
Maximum Stamping Speed 6500 sheets/hour
Maximum Holographic And Laser Stamping Speeds 5500 sheets/hour
Heating Area 20 heating zones with temperatures 20°-180
Height Of Infeed Stack 1600mm
Stack Height 1350mm
Main Motor Power 11kw
Power Of The Whole Machine 46kw
Total Weight 20.5 tons
Exterior Dimensions 6264*4350*2580mm
Maximum Gold Foil Size In Longitudinal Direction Φ250mm
Air Requirements 6-8Bar;600L/min
Maximum Holographic Stamping Speed
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy ±0.075mm
Maximum Horizontal Gold Foil Size
Mounting Parameters:E105Y

Commencement

Total Length Of Machine Profile
Total Width Of Machine Profile
Total Height Of Machine Profile
Feeder Unit Length
Die Cutting Unit Length
Stamping/Scrapping Unit Length
Take-up Unit Length
Unit Width
Footrest Width
Paper Delivery Aisle Space
Aisle Width Behind Machine
Exit Doorway Space
Net Weight
Package Size Long
Package Size Width
Package Size Height
