Brand new veneers for unmatched durability

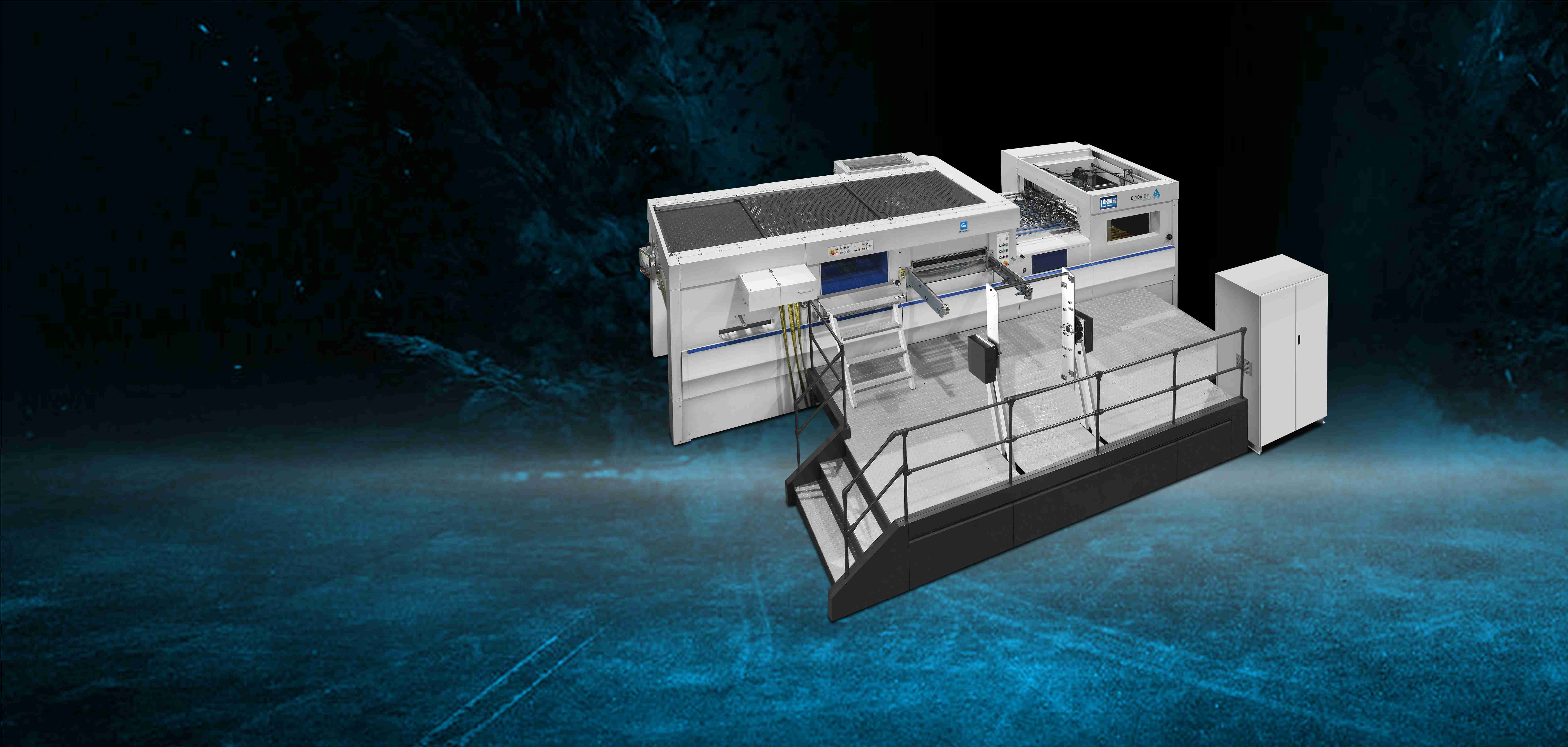

C106DY Single-station heavy-duty foil stamping and die-cutting machine

C106DY

Product Comparison

Product Overview

Premium Foil Stamping and Embossing: This foil stamping machine is designed to meet all the qualities you expect: excellent precision, exceptional productivity and outstanding product quality - everything you need to simply get brilliant results.

Large-area stamping: foil stamping, embossing and holographic applications The superior foil stamping structure is designed to meet the needs of large-area stamping.

High pressure deep embossing: meets the needs of products that require high pressure and three-dimensionality, such as wine packaging.

Time-saving ergonomics: fast changeover from hot stamping to die-cutting with almost no downtime due to foil breakage Equipped with a dedicated system for efficient production data management.

User-friendly operation interface: the stamping part adopts a 19-inch high-definition touch screen, all the settings as well as functions can be easily realized by touching Based on the special knowledge of the equipment, we have developed a characteristic operation and control system, which is simple, intuitive and easy to operate.

Contact Us

Product Highlights

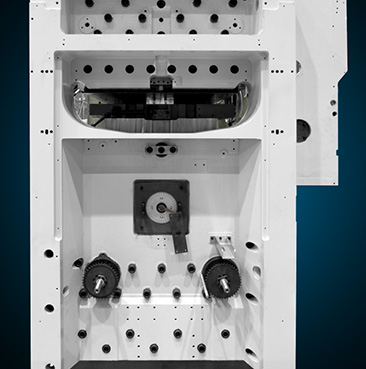

Reinforced mechanical wall panels are capable of meeting high pressure stamping and die cutting needs.

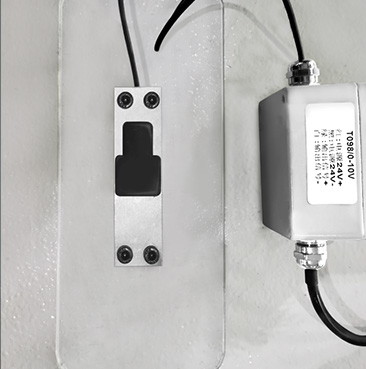

Real-time pressure detection ensures safe machine operation (optional).

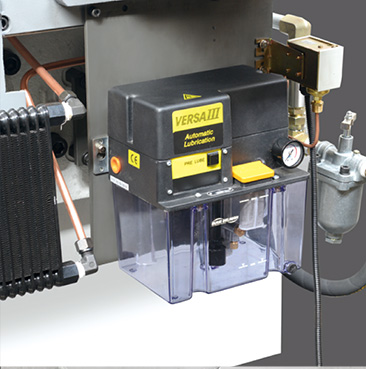

The automatic lubrication system allows you to adjust the refueling intervals and the amount of refueling in the system via a touch screen.

Easier operation can effectively avoid the waste of downtime caused by human error.

Parameters

Machine Parameter:C106DY

Commencement

Model Number C106DY
Maximum Die-cutting Width 1045*745mm
Maximum Stamping Area 1045*745mm
Bite Blank Range 9-17mm
Maximum Die Cutting Pressure 550 tons
Paper Specifications White cardboard: 90~2000g/m² Corrugated board: ≤4mm
Maximum Die Cutting Speed 6000 sheets/hour
Maximum Stamping Speed 6000 sheets/hour
Maximum Holographic And Laser Stamping Speeds 5500 sheets/hour
Heating Area 20 heating zones with temperatures 20°-180
Height Of Infeed Stack 1600mm
Stack Height 1350mm
Main Motor Power 15kw
Power Of The Whole Machine 50kw
Total Weight 25 tons
Exterior Dimensions 6264*4350*2580mm
Maximum Gold Foil Size In Longitudinal Direction Φ250mm
Air Requirements 6-8Bar;600L/min
Maximum Holographic Stamping Speed
Die-cutting And Normal Stamping Accuracy
Holographic Positioning Ironing Accuracy
Die Cutting Accuracy ±0.075mm
Maximum Horizontal Gold Foil Size
Mounting Parameters:C106DY

Commencement

Total Length Of Machine Profile 6264 mm
Total Width Of Machine Profile 4350 mm
Total Height Of Machine Profile 2580 mm
Feeder Unit Length 2425 mm
Die Cutting Unit Length 1500 mm
Stamping/Scrapping Unit Length 1067 mm
Take-up Unit Length 1270 mm
Unit Width 2350 mm
Footrest Width 2000 mm
Paper Delivery Aisle Space 3000 mm
Aisle Width Behind Machine 1500 mm
Exit Doorway Space 2500 mm
Net Weight 23 t
Package Size Long 6500 mm
Package Size Width 2300 mm
Package Size Height 2530 mm

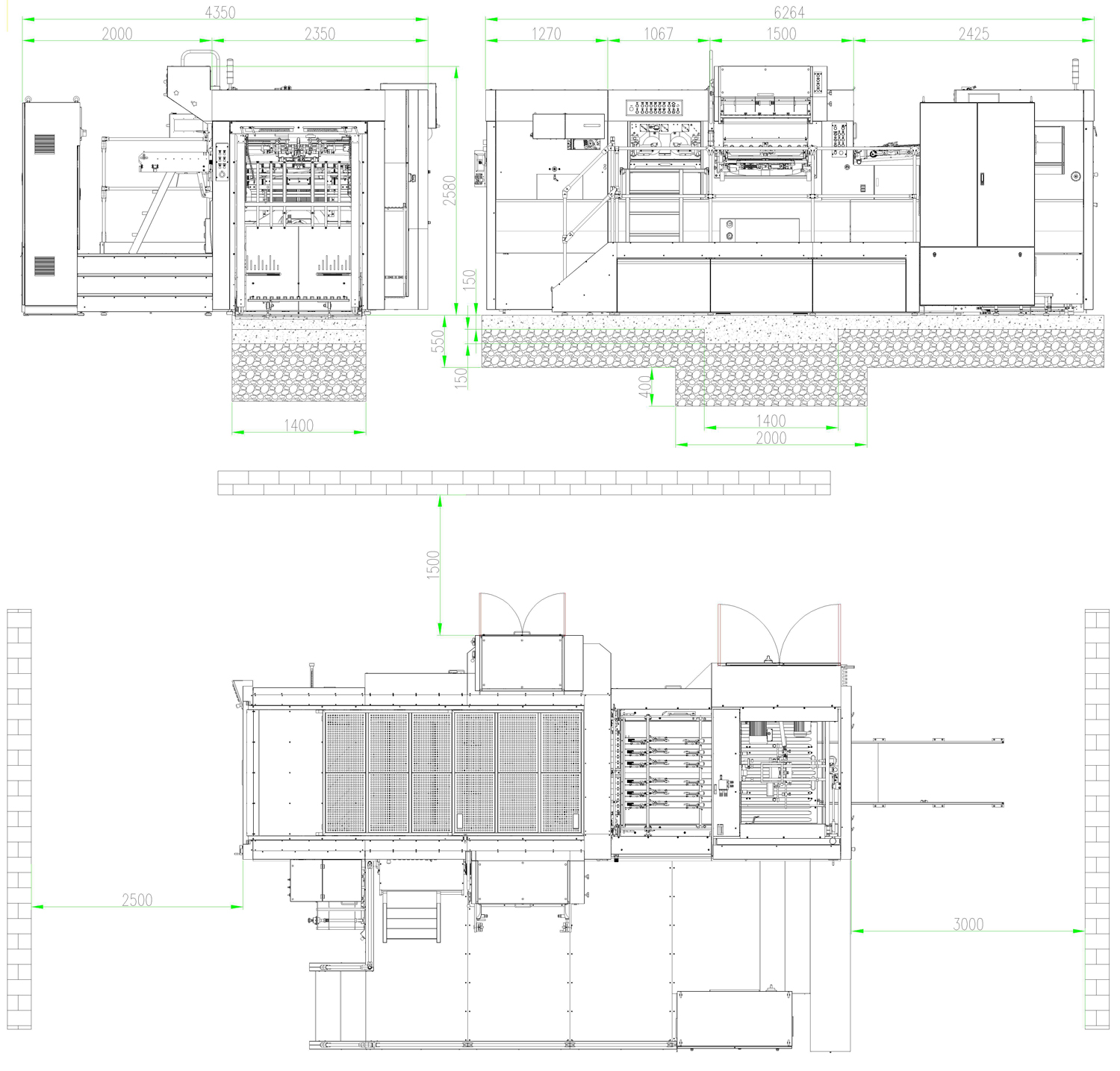

Installation Diagram
